Remove/Install ME-SFI [ME]/Engine Management Control Unit (MCM) - AR07.08-P-7013MNI

Engine 177 in model 290

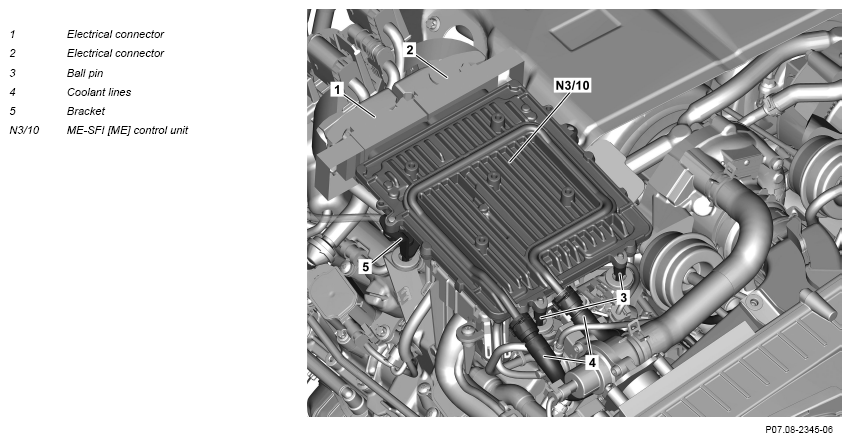

Shown on engine 177.9

G16557321Courtesy of MERCEDES-BENZ USA

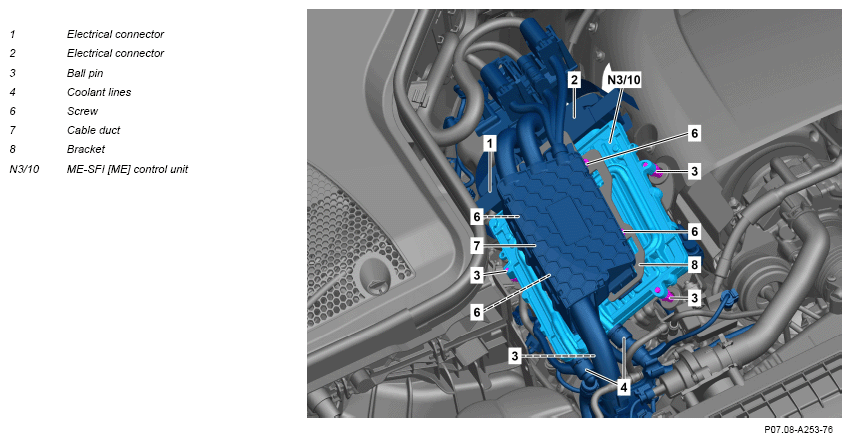

Shown on engine 177.8

G16557322Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Notes on coolant   AH20.00-P-2080-01KOA
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Connect diagnostic device and read out variant coding of the ME-SFI control unit (N3/10). When replacing the ME-SFI [ME] control unit (N3/10).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06FR
2 Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3 Remove upper engine cover. INSTALLATION IMPORTANT Only install upper engine cover after the leak test.
4 Remove cable duct (7) from holder (8) with electric lines connected and place to one side. Engine 177.8 in model 290
    NOTES
Do not crush or kink or subject electric lines to tension.
This will result in damage to the electric lines and can impair their function.

5 Release and disconnect electrical connectors (1, 2) from ME-SFI [ME] control unit (N3/10).
6 Clamp off coolant lines (4). SPECIAL TOOL Clamp Fig 1
7 Remove coolant lines (4) from ME-SFI control unit (N3/10).   AR20.20-P-7441-01RQ
8 Seal openings with suitable protective covers or stop plugs. SPECIAL TOOL Record plug Fig 3
    SPECIAL TOOL Set of protective covers Fig 2
9 Remove ME-SFI control unit (N3/10) upward out of the elastomer bearings. INSTALLATION IMPORTANT Coat elastomer bearings of ME-SFI [ME] control unit (N310) with antifriction paste.
    Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 *BR00.45-Z-1002-06A
10 Check elastomer bearings of the ME-SFI control unit (N3/10) for damage. If damage is present:

Replace elastomer bearings for ME-SFI [ME] control unit (N3/10).

11 Remove ball pins (3) from the ME-SFI control unit (N3/10). When replacing the ME-SFI [ME] control unit (N3/10).
    TORQUE SPECIFICATION M6x1 *BA00.10-P-1002-04A
12.1 Remove bracket (5) from the ME-SFI control unit (N3/10). Engine 177.9 in model 290
When replacing the ME-SFI [ME] control unit (N3/10).

    TORQUE SPECIFICATION M6x1 *BA00.10-P-1002-04A
12.2 Remove screws (6) and remove holder (8) from ME-SFI [ME] control unit (N3/10). Engine 177.8 in model 290
When replacing the ME-SFI [ME] control unit (N3/10).

    TORQUE SPECIFICATION M5x0.8 *BA00.10-P-1001-04A
13 Install in the reverse order.
14 Transfer read out variant coding to new ME-SFI control unit (N3/10). When replacing the ME-SFI [ME] control unit (N3/10).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06FR
15 Perform venting routine with vehicle diagnosis system.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06FR
16 Check low-temperature circuit engine cooling system for leak tightness.   AR09.41-P-1011MNI
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
17 Carry out engine test run and check engine for proper operation and leak tightness.
18 Install upper engine cover.
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1001-04A M5x0.8 Nm 5 8
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6x1 Nm 9 13
Fig 1: Identifying Clamp (000 589 54 37 00)
G16557323Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Set Of Protective Covers (001 589 11 91 00)
G16145174Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G16145009Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1002-06A Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 A 000 989 01 60
