Remove/Install Right Exhaust Gas Aftertreatment Unit Temperature Sensor - AR49.20-P-1507LSE
Model 290 with engine 177
with code 961 (Exhaust system with OPF, generation 2.0)

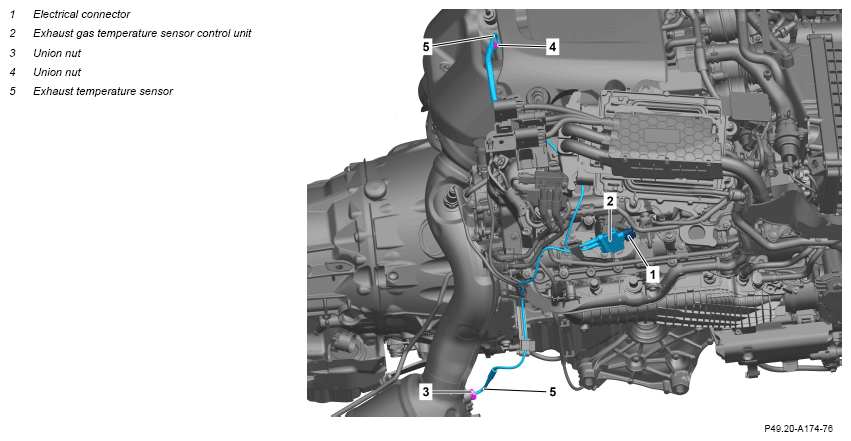

Fig 1: Right Exhaust Gas Aftertreatment Unit Temperature Sensor Components Location - Model 290 With Engine 177 With Code 961
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
| Remove/install | |||
| 1 | Remove upper Engine cover. | ||
| 2 | Remove ME-SFI control unit (N3/10) with connected coolant lines and place to one side. | AR07.08-P-7013MNI | |
| 3 | Release electrical connector (1) and disconnect. | ||
| 4 | Remove control unit of exhaust gas temperature sensor (2). | ||
| 5 | Remove center Engine compartment lining. | AR61.20-P-1105FRX | |
| 6 | Remove union nut (3) from right gasoline particulate filter and seal openings with suitable stop plugs. | *BA49.20-P-1001-03C | |
| Paste, hot lubrication 1 kg, DBL 6879.20 | *BR00.45-Z-1005-06A | ||
| Fig 3 | |||
| Fig 2 | |||
| 7 | Remove union nut (4) from right catalytic converter and seal openings with suitable stop plugs. | *BA49.20-P-1001-03C | |
| Paste, hot lubrication 1 kg, DBL 6879.20 | *BR00.45-Z-1005-06A | ||
| Fig 3 | |||
| Fig 2 | |||
| 8 | Expose electric lines and remove exhaust gas temperature sensor (5) with control unit of exhaust gas temperature sensor (2). | ||
| 9 | Install in the reverse order. | ||
| 10 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06FR | |||
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Perform Engine test run; in this connection, check exhaust system for proper operation and leak tightness. | ||
| 12 | Install center Engine compartment lining. | AR61.20-P-1105FRX | |
| 13 | Install upper Engine cover. |
EXHAUST GAS AFTERTREATMENT
| Number | Designation | Engine 177 in model 223, 290 | |
|---|---|---|---|
| BA49.20-P-1001-03C | Exhaust temperature sensor, upstream of catalytic converter/OPF | Nm | 45 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DBL 6879.20 | A 000 989 76 51 |
