Remove/Install Low-Temperature Circuit Additional Radiator - AR09.41-P-3001MNI
Engine 177 in model 290.679/689
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove/install | |||
| 1 | Drain off coolant. | AR20.00-P-1142FR | |
| 2 | Drain coolant from low-temperature circuit. | AR09.41-P-6834MNI | |
| 3 | Remove front left wheel and tire assembly. | AR40.10-P-1102A | |
| 4 | Remove front left fender liner. | AR88.10-P-1301FR | |

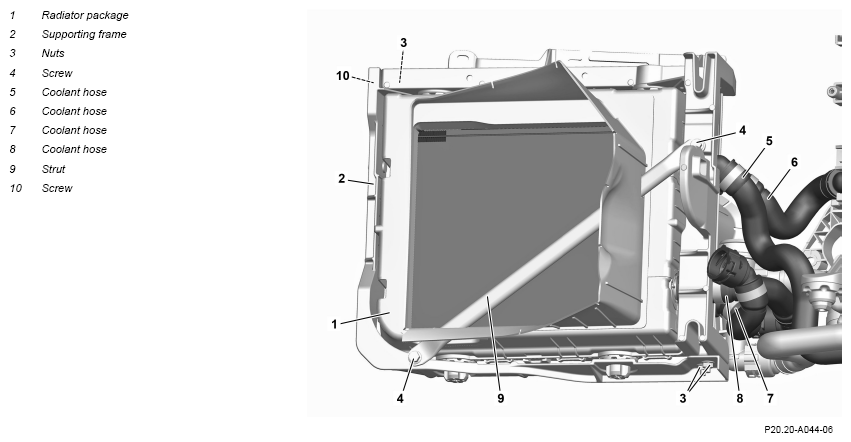

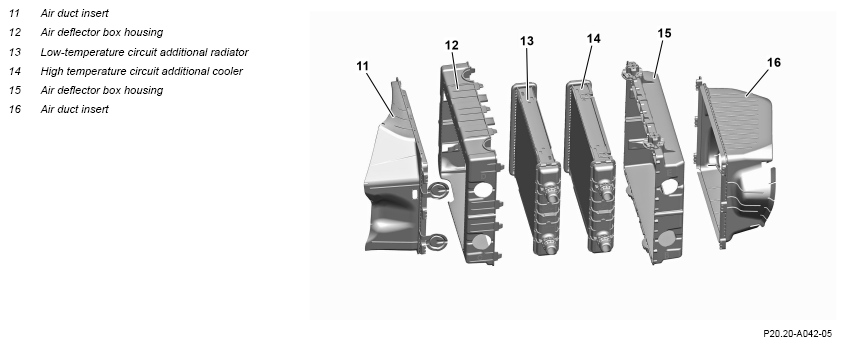

| 5 | Remove coolant hoses (5, 6, 7, 8) and seal openings with protective covers. | AR20.20-P-7441-01RQ | |
| Fig 1 | |||
| 6 | Remove screws (4) and remove strut (9). | ||
| 7 | Unscrew nuts (3). | ||
| 8 | Remove radiator package (1). | ||
| 9 | Remove air duct inserts (11, 16). | ||
| 10 | Disconnect air deflector box housings (12, 15). | ||
| 11 | Remove low-temperature circuit additional cooler (13). | ||
| 12 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 13 | Perform engine test run and check engine cooling systems for proper operation and leak tightness. | ||
| 14 | Install the front and lower center engine compartment lining. | AR61.20-P-1105FRX |
