Remove/Install Left Boost Pressure Sensor Upstream Of Throttle Valve - AR09.41-P-1020MNI

Engine 177 in model 290

MODIFICATION NOTES

29.07.2021 Document completely revised.

Shown on engine 177.9

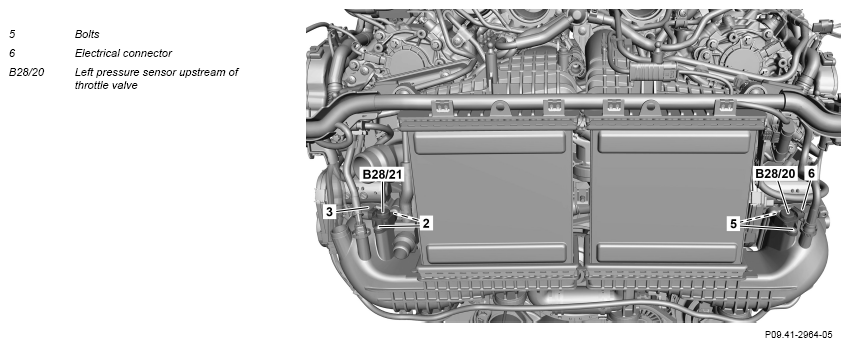

Fig 1: Left Boost Pressure Sensor Upstream Of Throttle Valve Components Location - Engine 177.9 In Model 290
G16557386Courtesy of MERCEDES-BENZ USA

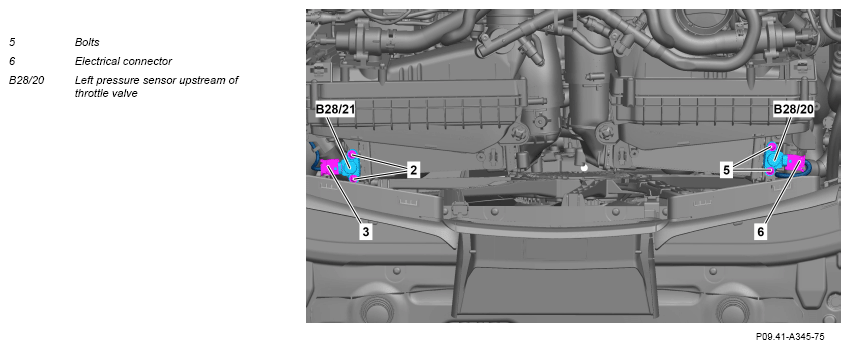

Shown on engine 177.8

G16557387Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVINGINSTALLING Remove/install
1.1 Remove fan unit. Engine 177.9 in model 290
      AR20.40-P-5050MNI
    INSTALLATION IMPORTANTDo not install upper engine  cover until after the leak test.
1.2 Remove left engine air intake duct. Engine 177.8 in model 290
      AR09.10-P-1151MNI
    INSTALLATION IMPORTANTDo not install upper engine  cover until after the leak test.
2 Release and disconnect electrical connector (6).
3 Remove screws (5). TORQUE SPECIFICATION Bolt, boost pressure sensor upstream/downstream of throttle valve *BA09.41-P-1005-01X
4 Remove pressure sensor upstream of left throttle valve (B28/20). INSTALLATION IMPORTANTReplace sealing ring and  moisten with lubricant.
    Lubricant, rubber assembly 1 L *BR00.45-Z-1010-06A
    SPECIAL TOOL Assembly tool Fig 2
5 Seal opening on charge air cooler with suitable stop plug. SPECIAL TOOL Record plug Fig 3
6 Install in the reverse order.
  Concluding tasks
7 Read out the fault memory and delete if necessary.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06FR
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
8 Perform engine test run. While doing so, check engine for proper operation and leak tightness.
CHARGE AIR LINE/CHARGE AIR COOLING

Number Designation Engine 177.8 in model 290
Engine 177.9 in model 167, 205, 213, 217, 222, 253, 290
Engine 177.9 in model 463
BA09.41-P-1005-01X Bolt, boost pressure sensor upstream/downstream of throttle valve Nm 6
Fig 2: Identifying Assembly Tool (000 589 93 63 00)
G16145173Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Record Plug (129 589 00 91 00)
G16145009Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1010-06A Lubricant, rubber assembly 1 L A 000 989 03 67
