Remove/Install Fan Unit - AR20.40-P-5050MNI

Engine 177 in model 290

MODIFICATION NOTES

19.04.2023 Document revised

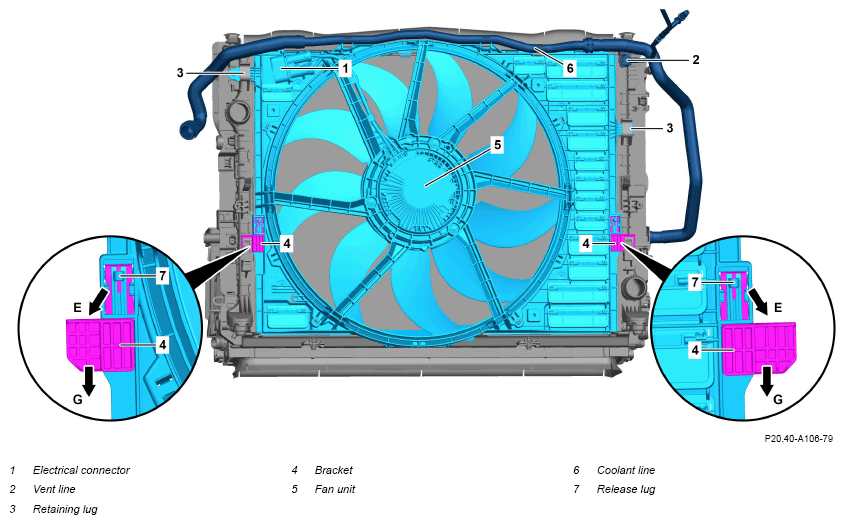

G16559355Courtesy of MERCEDES-BENZ USA

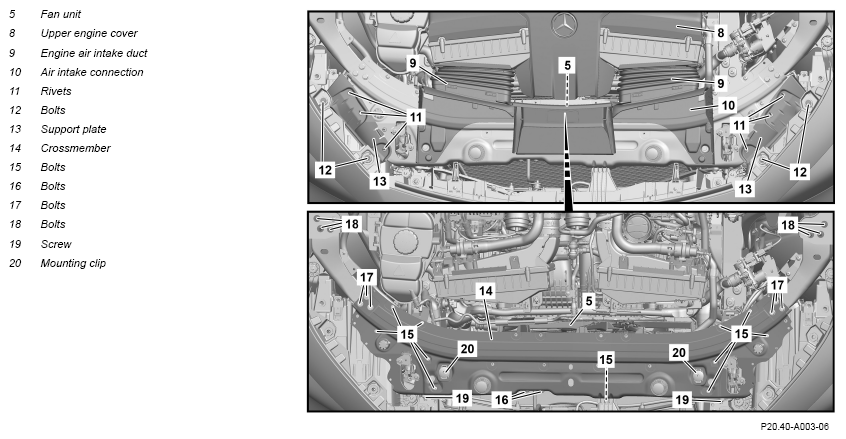

G16559356Courtesy of MERCEDES-BENZ USA

Shown on model 290 with code ME10 (Hybrid vehicle (Plug-in, PHEV))

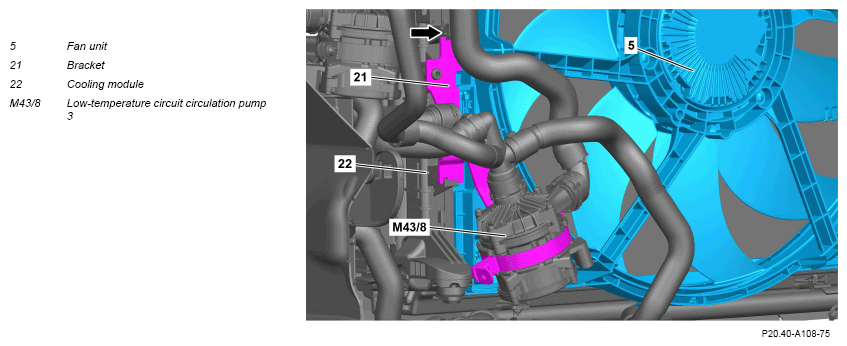

G16559357Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  Notes on coolant   AH20.00-P-2080-01KOA
  Notes on coolant level   AH20.00-P-1142-01CW
REMOVINGINSTALLING Remove/install
1 Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2 Remove upper engine cover (8).
REFER TO MAINTENANCE   INSTALLATION IMPORTANT : Only install upper engine cover (8) after leak test. AP01.10-P-2405-01E
3 Remove engine air intake ducts (9).
4 Unclip hood release cable at air intake fitting (10).
5 Remove air intake fitting (10).
6 Drill rivets (11). IMPORTANTCommercially available devices/tools
drill
riveter
IMPORTANT Remove drilling chips.

7 Remove screws (12) and remove supporting plates (13).
8 Remove screws (15).
9 Remove screws (16). TORQUE SPECIFICATION Bolt, lock striker to cross member/front-module carrier *BA62.30-P-1008-01H
10 Remove screws (17). TORQUE SPECIFICATION Bolt, strut to cross member *BA62.30-P-1003-01H
11 Remove screws (18). TORQUE SPECIFICATION Screw, front module carrier/cross strut to body/angle bracket for front module carrier *BA62.30-P-1007-01H
12 Remove screws (19). TORQUE SPECIFICATION Bolt, strut to cross member *BA62.30-P-1003-01H
13 Remove mounting clips (20).
14 Remove crossmember (14).
15 Unclip coolant line (6) from fan unit (5).
16 Release electrical connector (1) and disconnect.
17 Remove center and front bottom engine compartment lining.   AR61.20-P-1105FRX
18 Unclip bracket (21) at cooling module (22) (arrow), remove and place low-temperature circuit circulation pump 3 (M43/8) to one side with connected lines. Engine 177 in model 290
with code ME10 (Hybrid vehicle (plug-in, PHEV))

19 Remove bleed line (2) from cooler. SPECIAL TOOL Record plug Fig 1
20 Remove left and right bracket (4) from fan unit (5). IMPORTANT Pull release tabs (7) on left and right (arrow E) and remove brackets (4) on left and right from fan unit (5) (arrow G).
21 Detach fan unit (5) at radiator frame.
22 Press retaining lugs (3) rearward in engine compartment direction and remove fan unit (5) upward.
23 Mount protective plate on cooler. When performing subsequent work in engine compartment.
REFER TO SHOP-MADE TOOLS     WF58.50-P-0110-01A
24 Install in the reverse order.
25 Check coolant level and correct. FLUID SPECIFICATION Coolant mixing ratio *BF20.00-P-1001-04A
26 Connect diagnostic system, read out fault memory and clear if necessary.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-06FR
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
27 Carry out engine test run and check engine for proper operation and leak tightness.
28 Install upper engine cover (8).
REFER TO MAINTENANCE     AP01.10-P-2405-01E
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 290
BA62.30-P-1003-01H Bolt, strut to cross member M8 Nm 20
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 290
BA62.30-P-1007-01H Screw, front module carrier/cross strut to body/angle bracket for front module carrier Nm 11
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 290
BA62.30-P-1008-01H Bolt, lock striker to cross member/front-module carrier Nm 10
COOLANT MIXING RATIO

Number Designation All engines, except engine 178 in model 190.381
BF20.00-P-1001-04A Coolant mixing ratio Antifreeze/water Up to -25°C % -
Up to -37°C % 50/50
As of -38°C % 55/45
Overview and specifications sheet BB00.40-P-0310-01A
References to sheet specification BB00.40-P-0310ZZ
Fig 1: Identifying Record Plug (129 589 00 91 00)
G16145009Courtesy of MERCEDES-BENZ USA
