Remove/Install Vacuum Pump - AR43.05-P-1320MNI
Model 290 with engine 177
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove heat shield from exhaust gas turbocharger. | AR09.40-P-6044MNI | |
| 2 | Remove right lambda sensor downstream of catalytic converter. | AR07.04-P-0084MNI | |

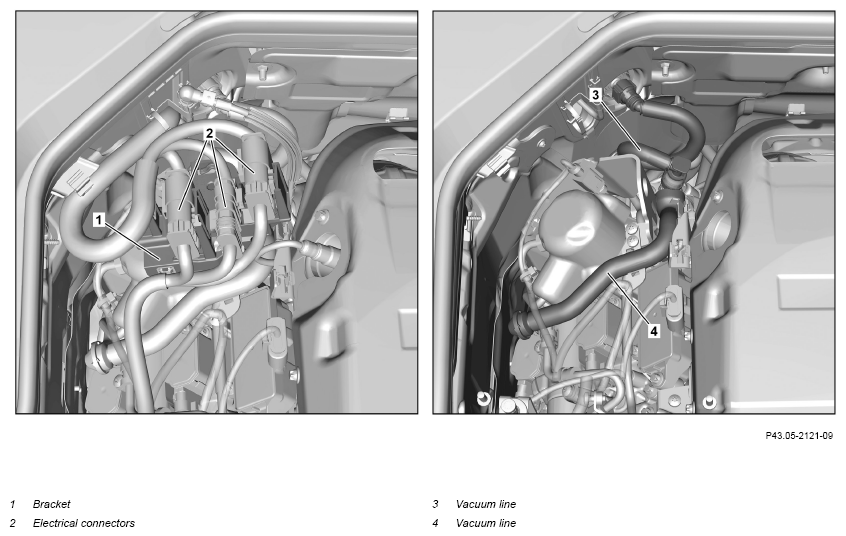

| 3 | Pull holder (1) with electrical connectors (2) upwards and place to one side. | ||
| 4 | Remove vacuum line (3) and seal openings using suitable stop plugs. | Fig 2 | |
| 5 | Remove vacuum line (4) from vacuum pump (5) and seal openings using suitable stop plugs. | Fig 2 | |

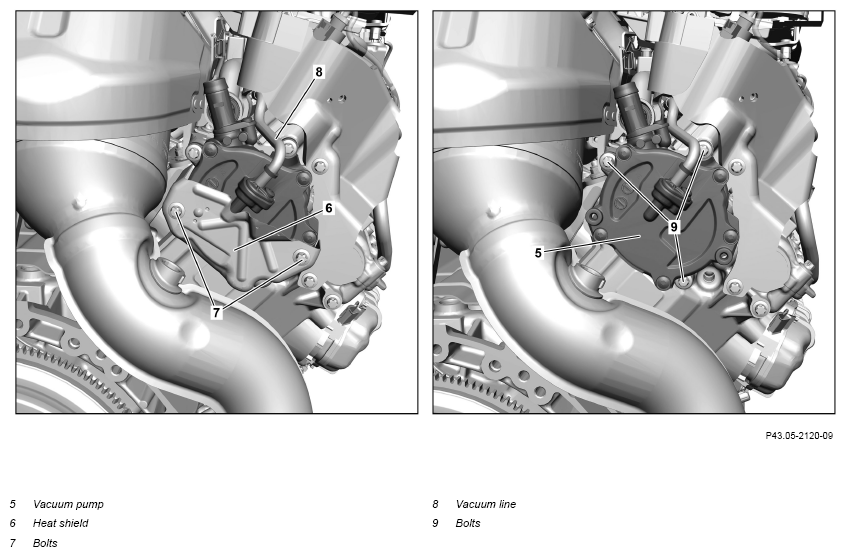

| 6 | Remove bolts (7) and remove heat shield (6). | *BA43.05-P-1003-01O | |
| 7 | Remove vacuum line (8) from vacuum pump (5) and seal openings using suitable stop plugs. | Fig 2 | |
| 8 | Remove screws (9). | *BA43.05-P-1001-01O | |
| 9 | Remove vacuum pump (5) upwards. | ||
| 10 | Install in the reverse order. | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 11 | Carry out engine test run, while doing so check service brake for proper operation and engine for leak tightness. | ||
| 12 | Install upper engine cover. |
VACUUM PUMP
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA43.05-P-1001-01O | Bolt, vacuum pump to cylinder head | Nm | 10 |
VACUUM PUMP
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA43.05-P-1003-01O | Bolt, heat shield to vacuum pump | Nm | 9 |
