Remove/Install Front Axle Brake Disk - AR42.10-P-0230FRK
Model 290
with code B07 (AMG - ceramic brake system)
MODIFICATION NOTES
| 18.03.2022 | If there is a problem, replace corresponding brake disk (2). | Operation step 3. |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Remove corresponding brake caliper with brake linings and secure to vehicle free of tension with lines attached. | Model 290 with code B07 (AMG - ceramic brake system) with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR42.10-P-0070LSE |
| Model 290 with code B07 (AMG - ceramic brake system) except code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR42.10-P-0070FRK | ||

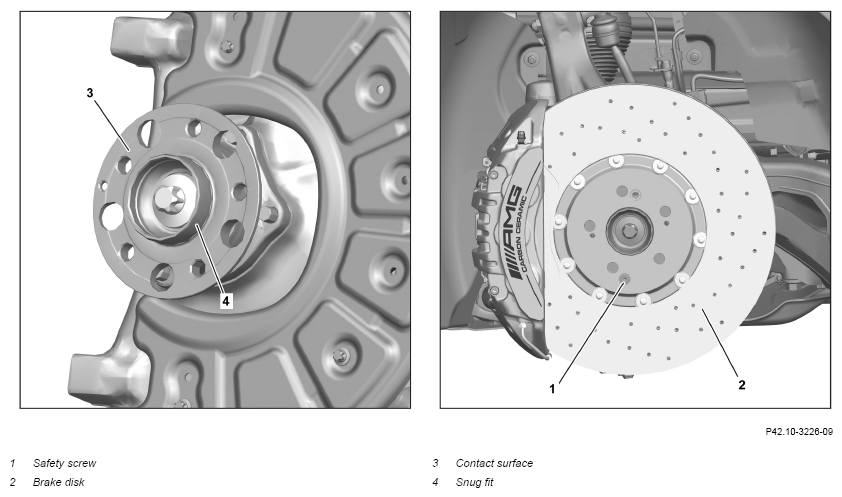

| 2 | Unscrew safety screw (1) and remove brake disk (2). | ||
| Check | |||
| 3 | Check brake disk (2) for condition and wear. | AR42.10-P-0270RG | |
| If there is a problem, ↓ replace corresponding brake disk (2). |
|||
| Clean | |||
| 4 | Clean contact surface (3) and interference fit (4). | Do not use sharp-edged or pointed objects. Otherwise, the contact surface (3) and interference fit (4) may get damaged. |
|
| Assembly cleaner | *BR00.45-Z-1028-04A | ||
| Install | |||
| 5 | Apply light coating of grease to interference fit (4) of brake disk (2). | Paste, hot lubrication 1 kg, DBL 6879.20 | *BR00.45-Z-1005-06A |
| 6 | Position brake disk (2) and screw in safety screw (1). | ||
| *BA42.10-P-1002-06J | |||
| 7 | Install brake caliper with brake linings. | Model 290 with code B07 (AMG - ceramic brake system) with code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR42.10-P-0070LSE |
| Model 290 with code B07 (AMG - ceramic brake system) except code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR42.10-P-0070FRK |
BRAKE DISKS, BRAKE COVER PLATE
| Number | Designation | Model 290 | |
|---|---|---|---|
| BA42.10-P-1002-06J | Locking bolt, brake disk of front axle to wheel hub | Nm | 10 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DBL 6879.20 | A 000 989 76 51 |
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
