Remove/Install Front Axle Brake Caliper - AR42.10-P-0070FRK

Model 290

with code B07 (AMG - ceramic brake system)

except code ME10 (Hybrid vehicle (plug-in, PHEV))

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on repairs to brake system		AH42.00-P-0003-01A
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Brake fluid notes		AH42.50-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A

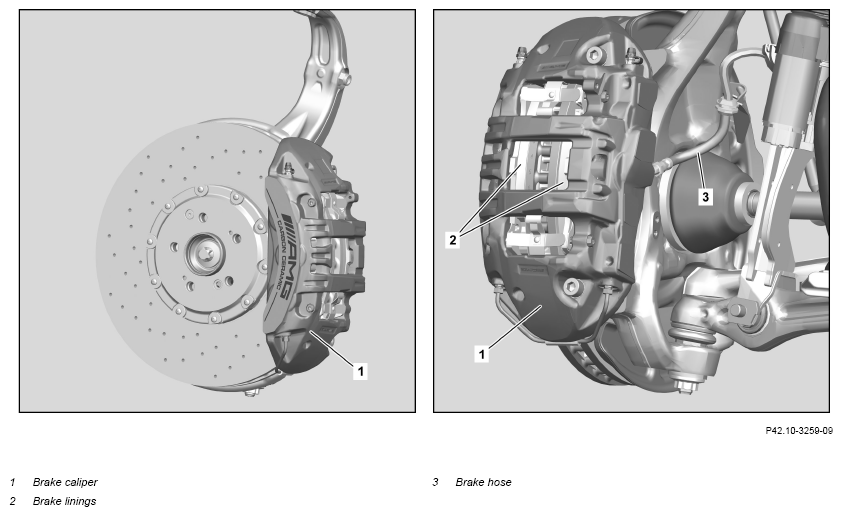

	Remove/install
1	Remove brake hose (3).		AR42.10-P-0026FR
2	Remove electrical connector of front right brake lining wear sensor at brake caliper (1).	Only when removing right brake caliper (1).
		Bolt, brake wear sensor to brake caliper	*BA42.10-P-1002-10BA
3	Remove brake pads (2) and brake caliper (1).		AR42.10-P-1610FRK
		The new brake caliper (1) is shipped in prefilled condition and it may not be drained. Otherwise the brake caliper (1) cannot be vented.
	Check
4	Check brake caliper (1) and dust boots of brake pistons for leak tightness and damage.	If there is a problem, ↓ Replace brake caliper (1).
5	Check brake disk for wear and condition.	If there is a problem, ↓ replace corresponding brake disk.	AR42.10-P-0120FRX
			AR42.10-P-0230FRK
6	Install in the reverse order.
	Concluding tasks
7	Bleed brake system.		AR42.10-P-0010FR
8	Operate brake pedal several times until the brake pads (2) make contact with the brake disks.	Firm resistance should be noticeable at the brake pedal.
9	Check and correct brake fluid level in brake fluid reservoir.
			AP42.10-P-4210B
	Risk of death  caused by limbs being caught or crushed by rotating parts when performing tests on the brake test stand	Never leave the vehicle unattended on the rollers except in an emergency. Ensure that no one is under the vehicle or near rotating parts during testing. In case of emergency, use the EMERGENCY OFF switch to shut down test stand.	AS42.00-Z-0001-01A
10	Perform brake test on test stand.
			AP42.00-P-4290BA
