Remove/Install Longitudinal Member Paneling - AR88.80-P-6000FR
Model 257, 290
MODIFICATION NOTES
| 31.03.2020 | Method extended. | Operation step 12 |

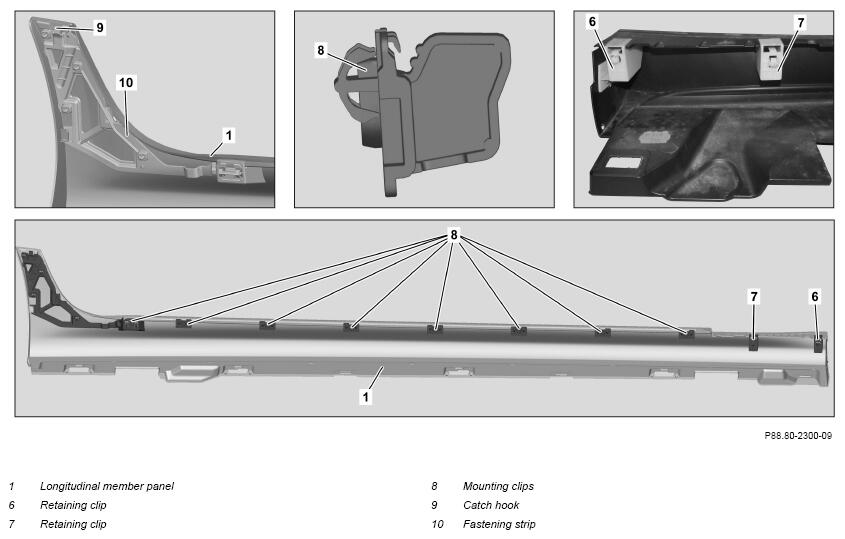

Shown on model 257 at left side of vehicle
Shown on model 257 at left side of vehicle
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Release underfloor paneling (2) in the area of the longitudinal member panel (1) and pull downward over the mounting bolts. | AR61.30-P-1001FR | |
| 2 | Remove expansion rivets (3). | ||
| 3 | Turn retaining clips (4) 90° and remove. | ||
| 4 | Open front door. | ||
| 5 | Open rear door. | ||
| 6 | Mask off rear door in front bottom area with tape. | ||
| 7 | Mask off longitudinal member panel (1) and body in the area of the retaining clips (6, 7) and catch hook (9) with tape. | ||
| 8 | Press front fender liner (5) to the side until the retaining clip (6) below is accessible. | ||
| 9 | Unclip retaining clip (6) with suitable pliers from the front fender and secure longitudinal member panel (1) against engaging again with a long wedge. | Fig 1 | |
| 10 | Unclip retaining clip (7) with a suitable screwdriver from the front fender and secure longitudinal member panel (1) against engaging again with a long wedge. | Fig 1 | |
| 11 | Unclip longitudinal member panel (1), starting from the rear, upwards out of retaining clips (8) using an extraction hook. | Fig 2 | |
| 12 | Release and disconnect upper electrical connector of logo projector. | Model 290 with code 588 (Logo projection via longitudinal member) |
|
| AR82.10-P-0003FR | |||
| 13 | Release catch hook (9) with a suitable tool and remove longitudinal member panel (1) upwards out of mounting strip (10). | ||
| 14 | Remove retaining clips (6, 7) from the longitudinal member panel (1) and clip into front fender. | ||
| 15 | Remove retaining clips (8) that remain on vehicle as well as mounting strip (10) from rear fender and attach to longitudinal member panel (1). | ||
| 16 | Install in the reverse order. |
