Remove/Install Complete Sideview Mirror - AR88.70-P-9000FR
Model 257, 290

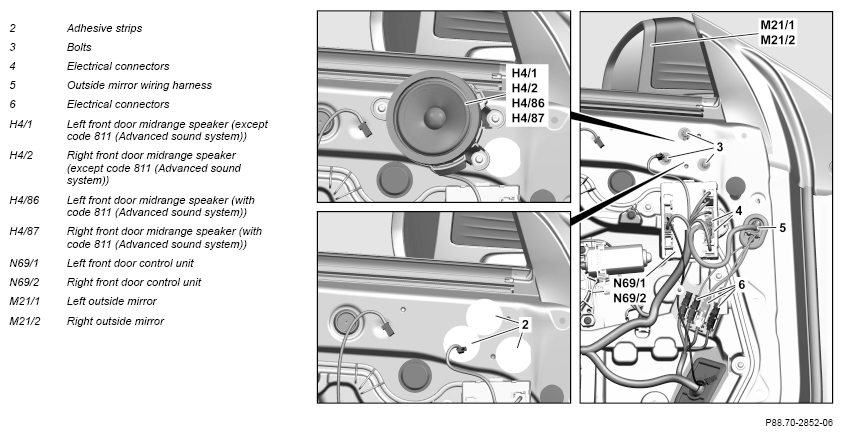

Shown on removed front door
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove door trim on front door. | AR72.10-P-6575FR | |
| 2 | Remove front door mid-range speaker (H4/1, H4/2, H4/86, H4/87). | ||
| 3 | Disconnect electrical connectors (4) from front door control unit (N69/1, N62/2). | ||
| 4 | Disconnect electrical connectors (6). | ||
| 5 | Use tape to fasten pull-through aid with a length of approx. 2 m to the electrical connectors (6). | ||
| 6 | Press grommet of the outside mirror wiring harness (5) into the front door. | ||
| 7 | Remove adhesive strips (2) over the screws (3). | ||
| 8 | Remove screw/bolts (3). | ||
| 9 | Remove outside mirror (M21/1, M21/2) from the front door and pull out outside mirror wiring harness (5) until approx. 30 cm of the pull-through aid is visible. | ||
| 10 | Remove pull-through aid from the electrical connectors (6), fasten with tape to the front door and place the outside mirror (M21/1, M21/2) to one side. | ||
| 11 | Install in the reverse order. | ||
| Calibrate | |||
| 12 | Calibrate all the cameras in the 360° camera system using the vehicle diagnosis system. | ||
| Model 257, 290 with code 501 (360° camera) |
AD00.00-P-2000-06FR |
