Rear Roof Frame Removal And Installation - Ar65.20-P-1008FRX
Model 290
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | |
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||
| 2 | Cover all detachable parts remaining in vehicle with spark protection blanket. | ||
| 3 | Remove center roof paneling. | Model 290 except code 397 (Carbon roof) except code 416 (Panoramic sunroof) |
AR65.10-P-1000FRX |

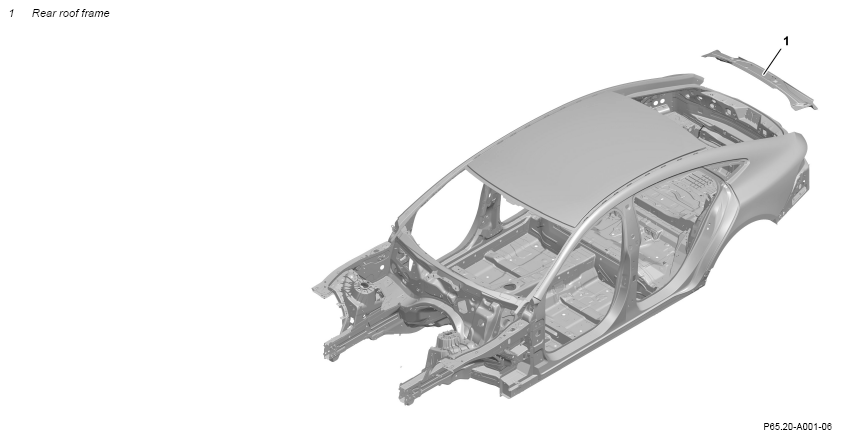

| 4 | Remove rear roof frame (1). | AR65.20-P-1008-01FRX | |
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| 5 | Prepare rear roof frame (1). | AR65.20-P-1008-02FRX | |
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Notice | Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | |
| 6 | Install rear roof frame (1). | AR65.20-P-1008-03FRX | |
| Parts kit for 2-component adhesive for body | *BR00.45-Z-1162-02A | ||
| 7 | Clean weld joints and sheet metal flange. | ||
| 8 | Install center roof paneling. | Model 290 except code 397 (Carbon roof) except code 416 (Panoramic sunroof) |
AR65.10-P-1000-07FRX |
| 9 | Clean repair area. | ||
| 10 | Remove spark protection blankets. | ||
| 11 | Install detachable parts in the area of the repair point. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
