Upper Front Longitudinal Member Partial Replacement - Ar62.20-P-1287FR
Model 257, 290
Shown on model 257
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of explosion from aluminum grinding dust, risk of injury to respiratory system from inhaling dust | Wear dust filter mask, safety glasses, and protective gloves. Use a suitable, grounded dust extraction system. |
AS60.00-Z-0007-01N | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Note on working on aluminum components and vehicles | Model 257 | AH60.00-P-0034-01FR |
| Notice | Note on working on aluminum components and vehicles | Model 290 | AH60.00-P-0034-01FRX |
| Notice | General information on crack diagnosis of aluminum parts | AH60.00-P-0014-01N | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | |
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area of repair point. | ||
| 2 | Cover all detachable parts remaining in vehicle with spark protection blankets. | ||

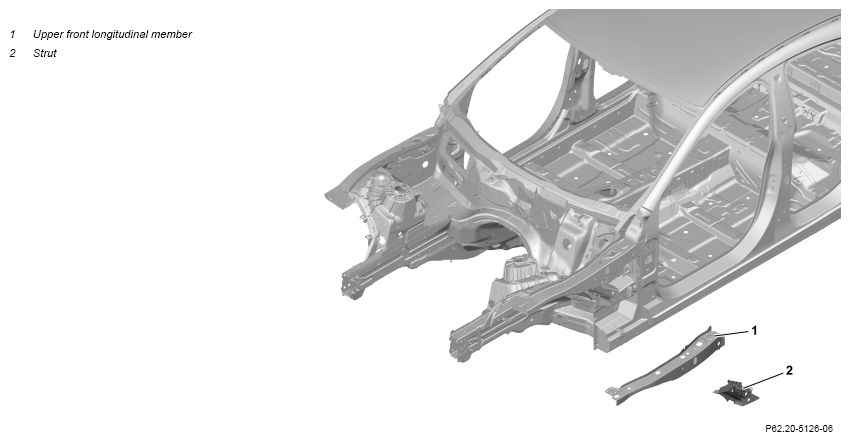

| 3 | Remove upper front longitudinal member (1) and strut (2). | AR62.20-P-1287-01FR | |
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Notice | Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | |
| General information on riveting | AH60.00-P-0003-01N | ||
| 4 | Prepare upper front longitudinal member (1) and strut (2). | AR62.20-P-1287-02FR | |
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| 5 | Install welding device. | AR62.20-P-1286-05FR | |
| Fig 2 | |||
| Fig 1 | |||
| 6 | Install upper front longitudinal member (1) and strut (2). | AR62.20-P-1287-03FR | |
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| Parts kit for 2-component adhesive for body | *BR00.45-Z-1162-02A | ||
| Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | *BR00.45-Z-1012-13A | ||
| Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | *BR00.45-Z-1035-13A | ||
| Fig 1 | |||
| Fig 2 | |||
| 7 | Clean weld joints and sheet metal flange. | ||
| 8 | Remove spark protection blankets. | ||
| 9 | Clean repair area. | ||
| 10 | Prime repair areas with a primer filler. | ||
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A | ||
| 11 | Seal seam after repair. | Model 257 | AR97.10-P-4000FR |
| Model 290 | AR97.10-P-4000FRX | ||
| 12 | Paint repair areas and adjacent surfaces. | ||
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A | ||
| 13 | Supplement cavity preservation. | Model 257 | AR97.20-P-1500FR |
| Model 290 | AR97.20-P-1500FRX | ||
| 14 | Reinstall detachable parts in area of repair point. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-13A | Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | A 004 990 16 97 |
| BR00.45-Z-1035-13A | Blind rivet Y1 6.4x12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
