Upper Front Longitudinal Member Partial Installation - Ar62.20-P-1287-03FR

Model 257, 290

Fig 1: Adapter Kit (213 589 00 23 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Welding Device (253 589 00 23 00)

Courtesy of MERCEDES-BENZ USA

The following operation steps are shown on the left side of the vehicle on model 257. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

1. Install upper front longitudinal member (1), fit and fix in place with welding fixture and adapter set.

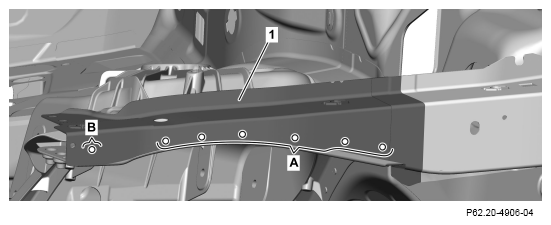

2. Drill rivet holes with a diameter of 6.7 mm into upper front longitudinal member (1) (areas A, B).

   Drill rivet holes from inside through present hole in body (area B).

3. Remove upper front longitudinal member (1) and welding fixture and adapter set.
4. Deburr drill holes on upper front longitudinal member (1) and body on both sides.
5. Remove drilling chips.

   Courtesy of MERCEDES-BENZ USA

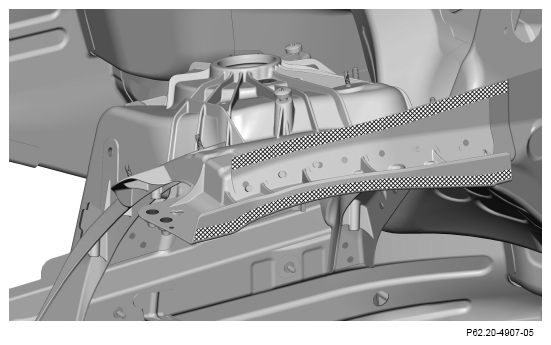

6. Apply 2-component adhesive to body in crosshatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

7. Install and fix in place upper front longitudinal member (1) with welding fixture and adapter set.

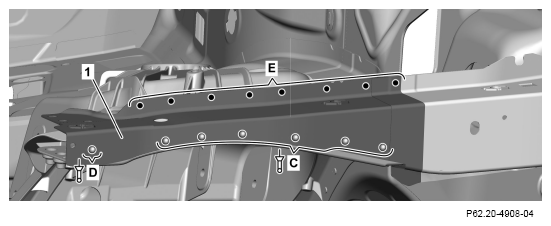

8. Rivet upper front longitudinal member (1) with rivets with a diameter of 6.5x12.5 (areas C, D).
9. Upper front longitudinal member (1) (area E).

   Courtesy of MERCEDES-BENZ USA

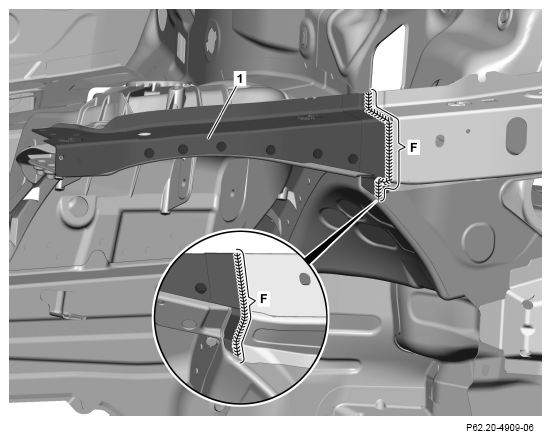

10. Upper front longitudinal member (1) (area F).

    Inert gas weld in intervals and allow welding area to cool down in between. This reduces heat distortion.

11. Remove welding fixture and adapter set.
12. Grind inert gas weld down flat on upper front longitudinal member (1) (area F).

    Grind down flat only in beaded areas and contact surfaces of strut.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

13. Install strut (2), fit and fix in place
14. Drill rivet holes with a diameter of 6.7 mm in strut (2) (areas G, H, I, J, K, L, M).
15. Remove strut (2).
16. Deburr rivet holes in strut (2) and body on both sides.
17. Remove drilling chips.
18. Coat insides of riveted joints in areas not bonded with zinc dust paint.

    Do not apply zinc dust paint to bonding surfaces.

    Otherwise adhesion problems may occur.

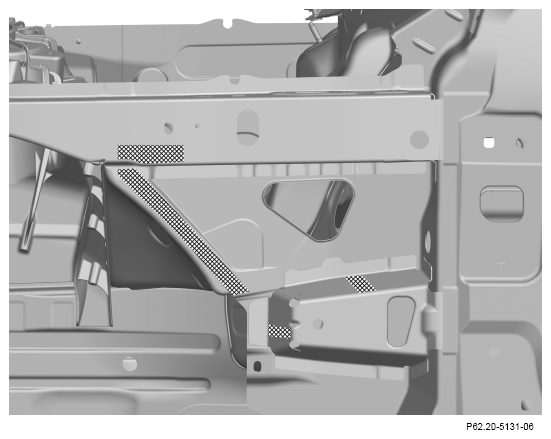

19. Apply 2-component adhesive to body in crosshatched areas.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

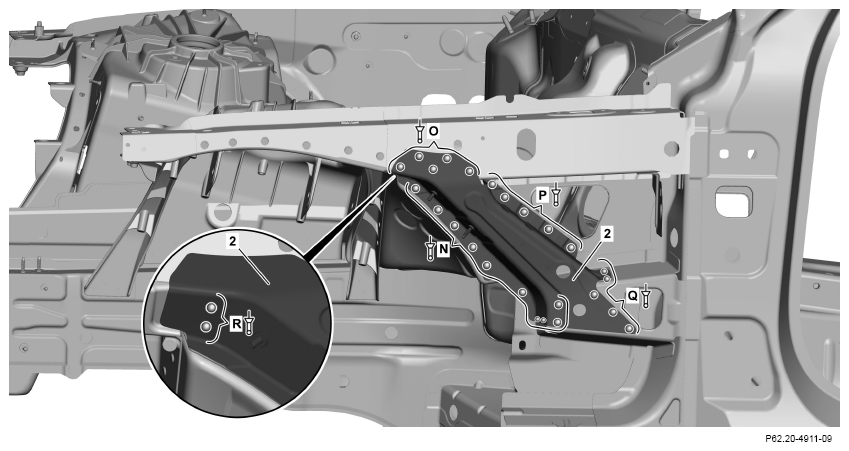

20. Rivet strut (2) with rivets with a diameter of 6.5x12.5 (areas N, O, Q).
21. Rivet strut (2) with rivets with a diameter of 6.4x12 (areas P, R).
