Remove/Install Rear Lamp Unit - AR82.10-P-4731FRX
Model 290
Shown on right side of vehicle
Shown on right side of vehicle
Shown on right side of vehicle
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove rear bumper. | AR88.20-P-2200FRX | |

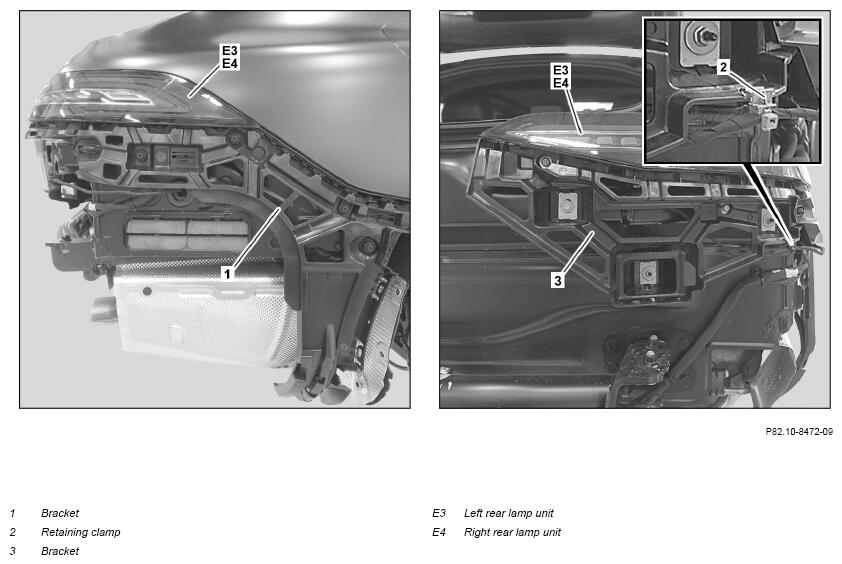

| 2 | Unscrew bracket (1) and place to one side. | ||
| 3 | Unclip retaining clamp (2) from bracket (3). | ||
| 4 | Unscrew bracket (3) and place to one side. | ||

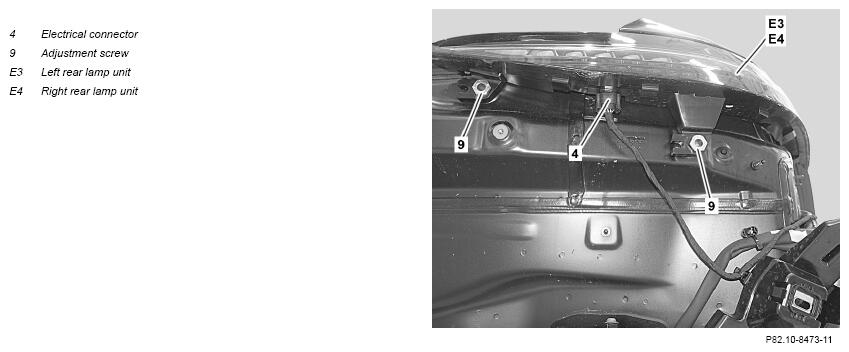

| 5 | Disconnect electrical connection (4). | ||
| 6 | Remove AIR BODY CONTROL control unit. | Model 290 with code 489 (AIR BODY CONTROL) When removing left rear lamp unit (E3). |
|
| AR32.22-P-0006FRX | |||
| 7 | Remove sound system control unit. | Model 290 with code 810 (Sound system) Model 290 with code 811 (Advanced sound system) |
|
| When removing left rear lamp unit (E3). | |||
| AR82.62-P-7724FRX | |||

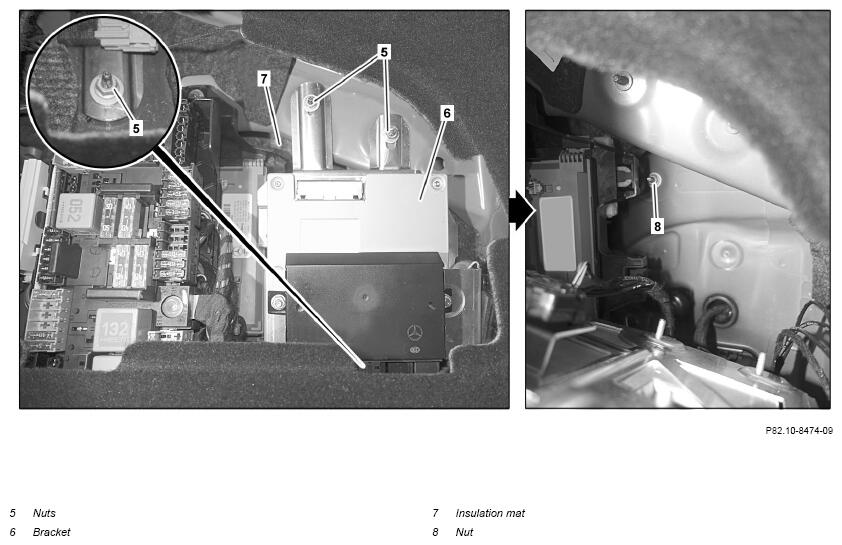

| 8 | Unscrew nut (5) and place bracket (6) with connected lines to one side. | Model 290 with code 380 (Car telephony package) Model 290 with code 550 (Trailer coupling) Model 290 with code 865 (TV tuner) Model 290 with code 899 (Multifunction telephony) Model 290 with code B24 (remote control for auxiliary heater) Model 290 with code U67 (230 V socket in interior compartment) Model 290 with code U80 (115 V socket) When removing right rear lamp unit (E4). |
|
| 9 | Push insulation mat (7) to one side. | When removing right rear lamp unit (E4). | |
| 10 | Unscrew nut (8) and remove rear lamp unit (E3, E4). | ||
| 11 | Install in the reverse order. |
