Remove/Install Antenna Splitter - AR82.70-P-8953FRX
Model 290 with code 380 (Car telephony package) with code 503 (Remote-controlled parking)
Model 290 with code 380 (Car telephony package) with code B24 (Remote control for Auxiliary heating)
Model 290 with code 503 (Remote-controlled parking) with code 899 (Multifunction telephony)
Model 290 with code 899 (Multifunction telephony) with code B24 (Remote control for Auxiliary heating)
Shown with code 550 (Trailer hitch) and with code U67 (230 volt socket in vehicle interior)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove side trim in right load compartment. | AR68.30-P-1185FRX | |
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

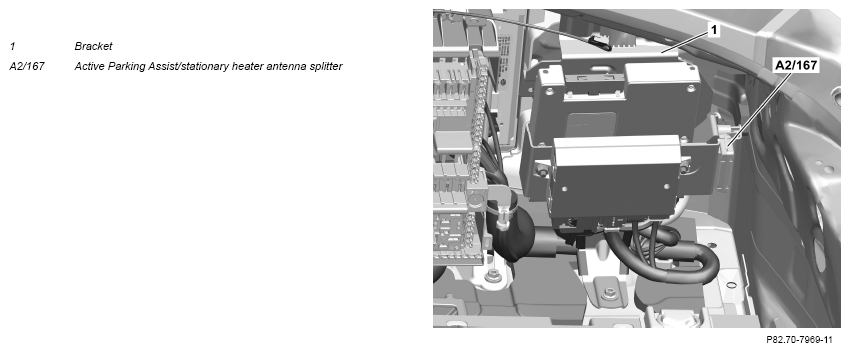

| 3 | Remove holder (1) and set aside with control units attached. | ||
| 4 | Disconnect electrical connectors from Active Parking Assist/stationary heater antenna splitter (A2/167). | ||
| 5 | Unclip and remove Active Parking Assist/stationary heater antenna splitter (A2/167). | ||
| 6 | Install in the reverse order. |
