Remove/Install Antenna Changeover Switch - AR82.62-P-0010FRX
Model 290 with code 380 (Car telephony package) with code 899 (Multifunction telephony)
Shown with code 550 (Trailer hitch) and with code U67 (230 volt socket in vehicle interior)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove side trim in right load compartment. | AR68.30-P-1185FRX | |
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

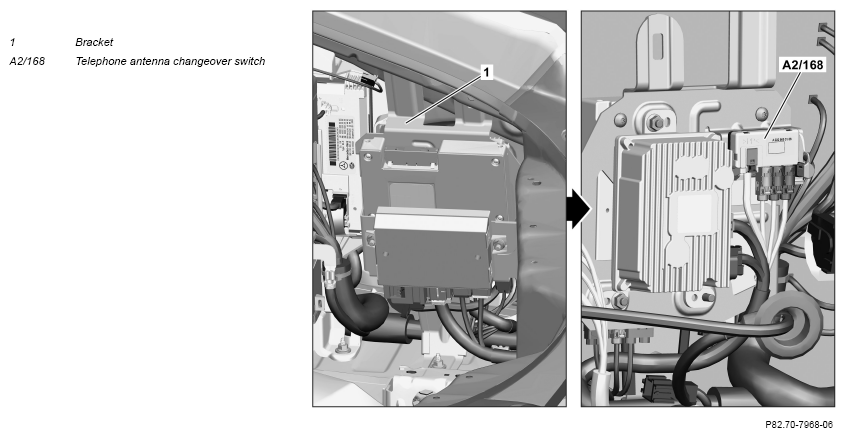

| 3 | Remove holder (1) and set aside with control units attached. | ||
| 4 | Disconnect electrical connectors from telephone antenna changeover switch (A2/168). | ||
| 5 | Unclip telephone antenna changeover switch (A2/168) and remove. | ||
| 6 | Install in the reverse order. |
