Retrofit CD Drive - AZ82.64-P-0002RXR

Model 290

as of model year 2020

with code 460 (Canada version)

with code 531 (COMAND APS)

except code 320 (Single CD drive preinstallation)

except code 498 (Japanese version)

except code P21 (Air quality package)

Model 290

as of model year 2020

with code 494 (US version)

with code 531 (COMAND APS)

except code 320 (Single CD drive preinstallation)

except code 498 (Japanese version)

except code P21 (Air quality package)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on retrofitting electrical/optical lines		AH82.00-P-0000-01A
	Remove
1	Remove glove box.
			AR68.10-P-1402FR
2	Detach head unit and place to one side with lines still connected.
			AR82.85-P-1101FR
3	Remove Audio/COMAND display.
			AR82.85-P-7429FR
4	Remove trim at bottom for instrument panel on driver's side.
			AR68.10-P-1501FR
5	Release fuse and relay module on driver's side.
			AR54.15-P-0003FR
	Install

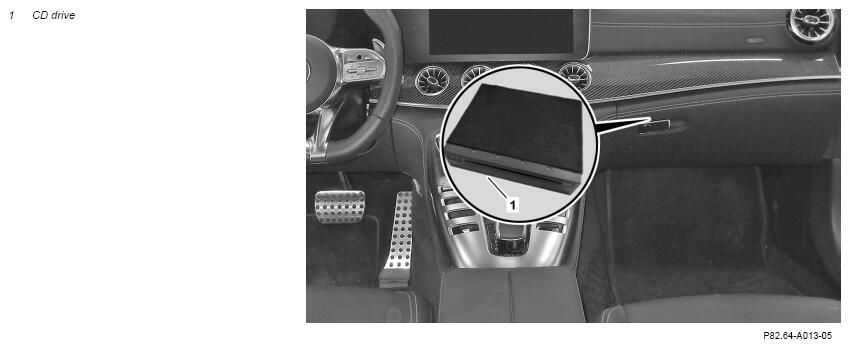

6	Produce adhesive film cutting template for CD drive (1).	Fabricate adhesive film cutting template for CD drive	AZ82.64-P-0002-05LF
7	Cut adhesive film to size using cutting template.
8	Fabricate cutting template for CD drive (1).		AZ82.64-P-0002-10LWP
9	Fabricate drilling template for CD drive (1).		AZ82.64-P-0002-07LWP
10	Prepare glove compartment housing for installation of CD drive (1).		AZ82.64-P-0002-08LWP
11	Make cutout at glove compartment housing.		AZ82.64-P-0002-11LWP
12	Retrofit wiring harness for CD drive (1).		AZ82.64-P-0002-01RX
Notice	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
	Assignment of driver-side fuse and relay module		GF54.15-P-1256-49FR
		The wiring diagram documentation for this model series is available in the DWD (Dynamic Wiring Diagram). https: //ws-retailfactory-dyna.mercedes-benz.com/start-aspu/
		Left footwell ground point	*BA00.19-P-1021-02D
13	Insert a fuse with a fuse rating of 5 A into slot 207 of driver's side fuse and relay module.
	Assignment of driver-side fuse and relay module		GF54.15-P-1256-49FR
14	Place glove compartment housing in front passenger footwell.
15	Retrofit CD drive (1) in glove compartment housing.		AZ82.64-P-0002-03LWR
16	Attach absorption fleece sheets at glove compartment housing.
17	Install glove compartment housing with CD drive (1).
			AR68.10-P-1402FR
		Pay attention to installation of lines.
18	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
19	Enter special equipment into on-line vehicle data card.	Code 320 (Single CD drive pre-installation).
20	Attach note "CD drive retrofitted as per AZ82.64-P-0002RXR" and "USB port in rear passenger compartment decommissioned" under field organization texts to DG 82 and DG 54.
21	Connect diagnostic system and select vehicle using vehicle identification number (VIN).
			AD00.00-P-2000-06FR
22	Perform variant coding using the software calibration number (SCN).	Head unit.
23	Disconnect diagnostic system.
			AD00.00-P-2000-06FR
	Check
24	Perform function test.	See Owner's Manual.

Number	Designation			Model 290
BA00.19-P-1021-02D	Left footwell ground point	W34	Nm	10

Part no.	Designation	Quantity
KG 98 (see EPC)	CD drive parts kit	1
