Remove/Install Trunk Lid/Tailgate Control Warning Buzzer - AR72.20-P-3610FRX
Model 290
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove bottom liftgate trim. | AR72.20-P-6617FRX | |

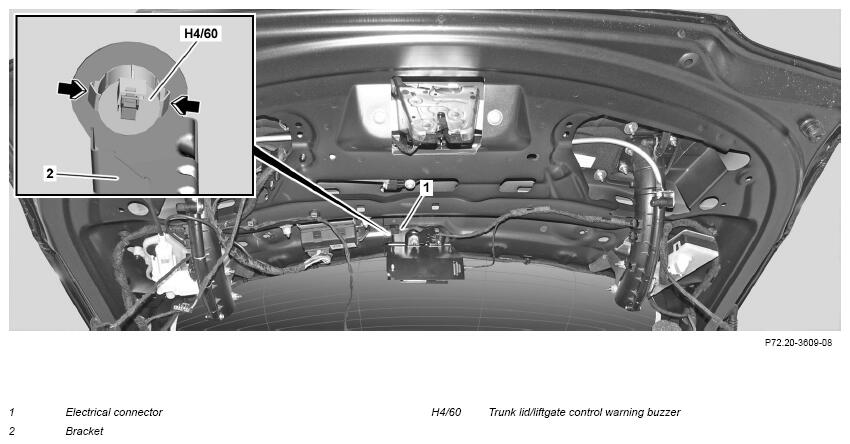

| 2 | Disconnect electrical connector (1). | ||
| 3 | Press catch hooks together (arrows) and remove trunk lid/liftgate control warning buzzer (H4/60) from the bracket (2). | ||
| 4 | Install in the reverse order. |
