Remove/Install Lower Liftgate Trim - AR72.20-P-6617FRX
Model 290
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

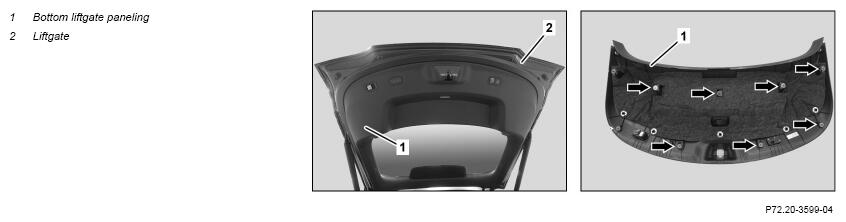

| 2 | Unclip the lower liftgate trim (1) at the retaining clips (arrow) and remove it until all electrical connectors are accessible. | Fig 1 | |
| 3 | Disconnect the electrical connectors on the lower liftgate trim (1) and remove the lower liftgate trim (1). | ||
| 4 | Install in the reverse order. |
