Remove/Install Rear Flap Hinge - AR72.20-P-1024FRX
Model 290
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Remove headliner. | AR68.30-P-4300FRX | |
| 2 | Remove damping above the screws (2). | ||

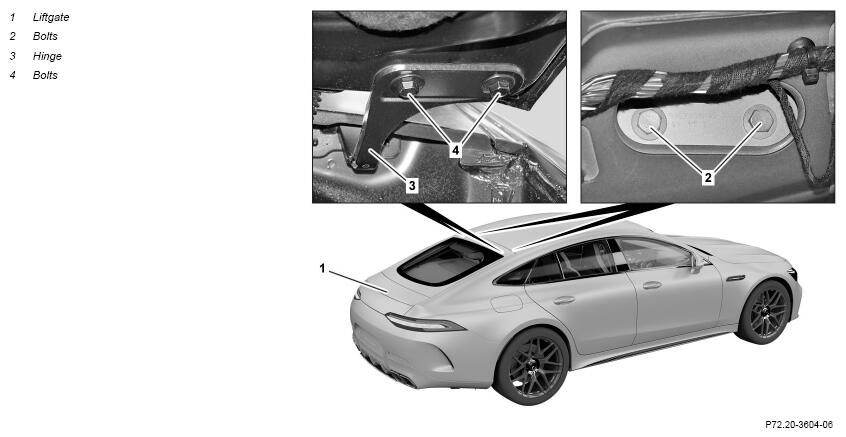

| 3 | Secure liftgate (1) with support. | Fig 1 | |
| 4 | Lay a rag between bodyshell and liftgate (1) to protect against paint damage. | ||
| 5 | Make installation markings on hinge (3) and liftgate (1). | ||
| 6 | Unscrew screw/bolts (4). | If both hinges (3) are to be removed, the second hinge (3) should only be removed after installing the first hinge (3). Otherwise, the liftgate (1) can be damaged or the adjustment of the liftgate (1) can be changed. |
|
| *BA72.20-P-1001-02O | |||
| 7 | Make installation markings on the hinge (3) and bodyshell. | ||
| 8 | Remove screws (2) and hinge (3). | If both hinges (3) are to be removed, the second hinge (3) should only be removed after installing the first hinge (3). Otherwise, the liftgate (1) can be damaged or the adjustment of the liftgate (1) can be changed. |
|
| Install | |||
| 9 | Please hinge (3) against bodyshell and tighten screws (2). | ||
| *BA72.20-P-1001-02O | |||
| 10 | Tighten screws (4) on liftgate (1). | ||
| *BA72.20-P-1002-02O | |||
| 11 | Remove rag. | ||
| 12 | Remove support from liftgate (1). | ||
| Check | |||
| 13 | Check gap dimensions of liftgate (1), and adjust if necessary. | AR72.20-P-0002FRX |
LIFTGATE
| Number | Designation | Model 290 except code U94/U99 | Model 290 with code U94/U99 | |
|---|---|---|---|---|
| BA72.20-P-1001-02O | Bolt, hinge to body-in-white | Nm | 40 | 40 |
LIFTGATE
| Number | Designation | Model 290 except code U94/U99 | Model 290 with code U94/U99 | |
|---|---|---|---|---|
| BA72.20-P-1002-02O | Bolt, hinge to liftgate | Nm | 40 | 40 |
