Remove/Install Electric Liftgate Control Unit - AR72.29-P-0003FRX
Model 290
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission the liftgate control unit (N121/1) using vehicle diagnosis system. | When replacing liftgate control unit (N121/1). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove lower liftgate trim. | AR72.20-P-6617FRX | |

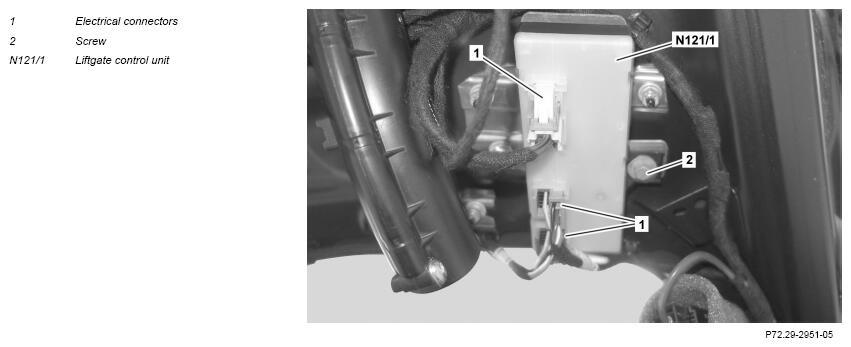

| 4 | Disconnect electrical connectors (1). | ||
| 5 | Remove screw (2) and take off liftgate control unit (N121/1). | ||
| 6 | Install in the reverse order. | ||
| Normalizing | |||
| 7 | Close the liftgate by hand. | ||
| 8 | Switch driver trunk lid/liftgate control button in driver's side door trim to "Open" position until liftgate has reached upper stop. | ||
| 9 | Switch driver trunk lid/liftgate control button in driver's side door trim to "Open" position again for 4 s. |
