Remove/Install Side Airbag Sensor - AR91.60-P-0710FR

Model 257, 290

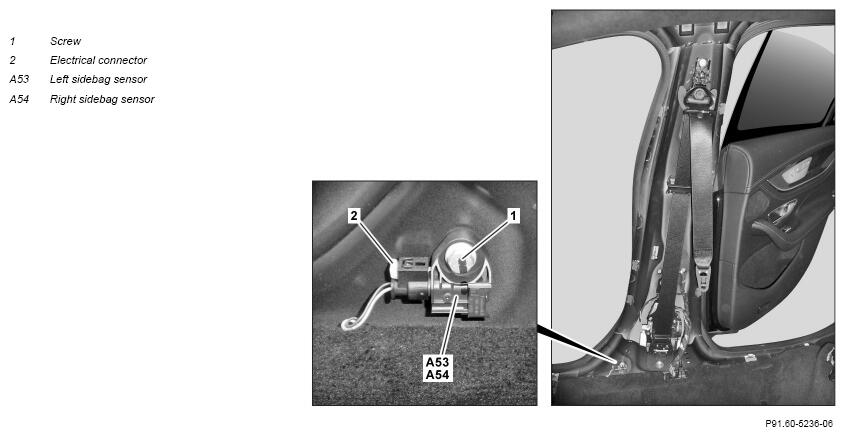

Shown on model 257, on right side of vehicle with front seat removed

Fig 1: Side Airbag Sensor Components Location - Model 290 (Shown On Model 257)

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove lower B-pillar trim.		AR68.30-P-4700FR
		It is not necessary to remove the belt end fitting.
2	Disconnect ground line from on-board electrical system battery.		AR54.10-P-0003FR
3	Unscrew bolt (1).	Bolt, side airbag sensor to B-pillar	*BA91.60-P-1008-01O
4	Disconnect electrical connector (2).
5	Remove left side airbag sensor (A53) or right side airbag sensor (A54).
6	Install in the reverse order.
	Check
7	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.	When replacing the left side airbag sensor (A53) or the right side airbag sensor (A54).
			AD00.00-P-2000-06FR
