Remove/Install Front Seat Head Restraint Adjustment Motor - AR91.29-P-1432FR
Model 257
with code 275 (Memory Package (driver's seat, steering column and mirror))
Model 290
with code 275 (Memory Package (driver's seat, steering column and mirror))
except code 555 (AMG-Performance Seat)
Shown on model 257

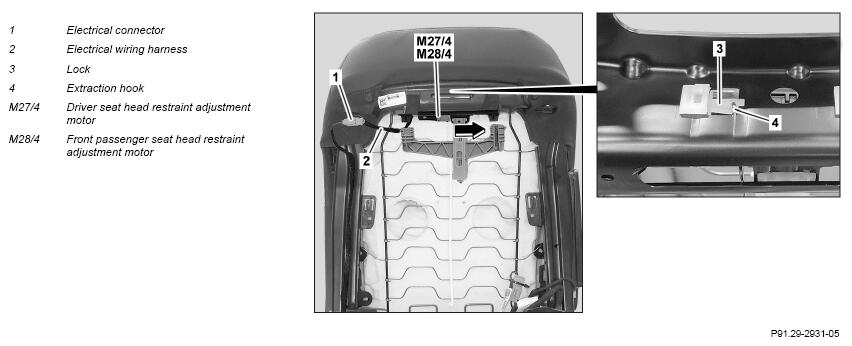

Fig 1: Front Seat Head Restraint Adjustment Motor Components Location - Model 290 With Code 275 Except Code 555 (Shown On Model 257)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove head restraint from front seat. | AR91.16-P-0040FR | |
| 2 | Disconnect electrical connector (1). | ||
| 3 | Expose the electrical wiring harness (2). | ||
| 4 | Unlock lock (3) using extraction hook (4), move head restraint adjustment seat adjustment motor (M27/4, M28/4) in direction of arrow and remove. | Fig 2 | |
| 5 | Install in the reverse order |
