Remove/Install Cap For Armrest Of Center Console In Rear Passenger Compartment - AR68.20-P-2371FRX
Model 290 with code 224 (Individual rear seats)
| Remove/install | |||

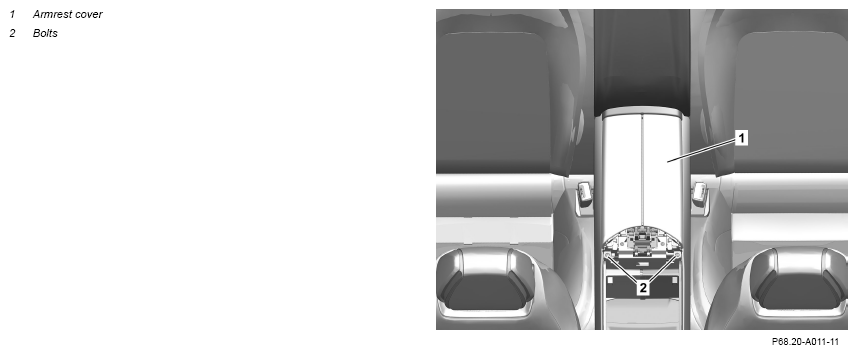

| 1 | Remove cover from the center console in the rear passenger compartment. | AR68.20-P-2202FRX | |
| 2 | Unscrew bolts (2). | ||
| 3 | Extend armrest cap (1) toward the front and remove. | ||
| 4 | Install in the reverse order |
