Remove/Install Armrest Heater Control Unit - AR68.20-P-0004FRX
Model 290 with code 906 (Front armrest heater)
Shown with code 811 (Advanced sound system) and with code 489 (AIR BODY CONTROL)
Shown with code 811 (Advanced sound system) and with code 489 (AIR BODY CONTROL)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of armrest heater control unit (N5). | When replacing the armrest heater control unit (N5). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove side trim in left load compartment. | AR68.30-P-1185FRX | |

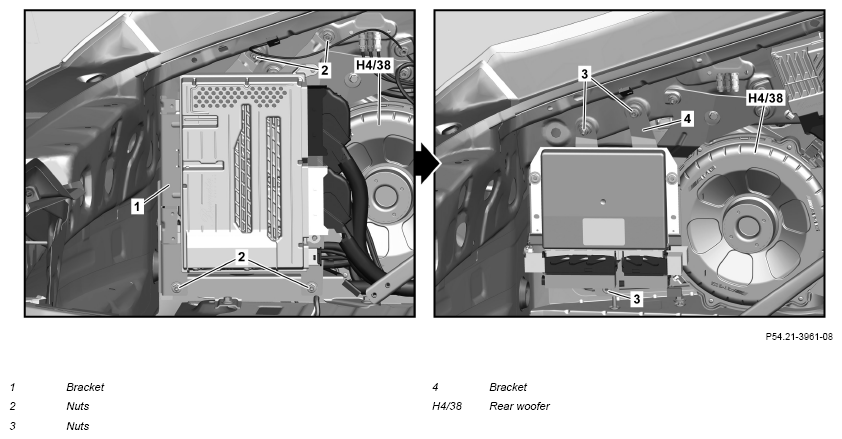

| 4 | Unscrew nuts (2) and set aside holder (1) with control units attached. | Model 290 with code 810 (Sound system) with code 906 (Front armrest heater) Model 290 with code 811 (Advanced sound system) with code 906 (Front armrest heater) |
|
| 5 | Unscrew nuts (3) and set aside holder (4) with control units attached. | ||
| 6 | Remove rear bass speaker (H4/38). | Model 290 with code 810 (Sound system) with code 906 (Front armrest heater) Model 290 with code 811 (Advanced sound system) with code 906 (Front armrest heater) |
|
| AR82.62-P-7842FRX | |||

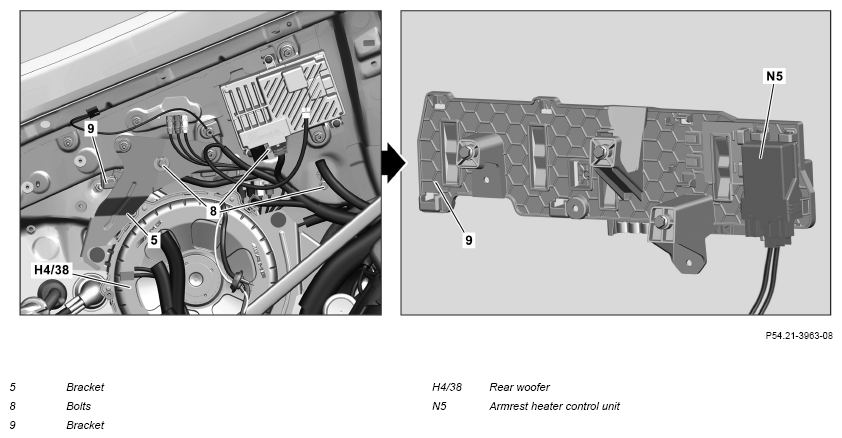

| 7 | Loosen screws (8), remove bracket (9) with armrest heater control unit (N5), and set aside in the vehicle. | ||
| 8 | Disconnect electrical connector from the armrest heater control unit (N5). | ||
| 9 | Unclip armrest heater control unit (N5) from the bracket (9) and remove. | ||
| 10 | Install in the reverse order. |
