Remove/Install Window Airbag - AR91.60-P-0693FR
Model 257, 290
Shown on model 257 on left side of vehicle
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Adjust driver and front passenger seat into fully reclined position | ||
| 2 | Disconnect ground line on battery. | AR54.10-P-0003FR | |
| 3 | Remove roof lining and place onto seats. | ||
| Model 257 | AR68.30-P-4300FR | ||
| Model 290 | AR68.30-P-4300FRX | ||

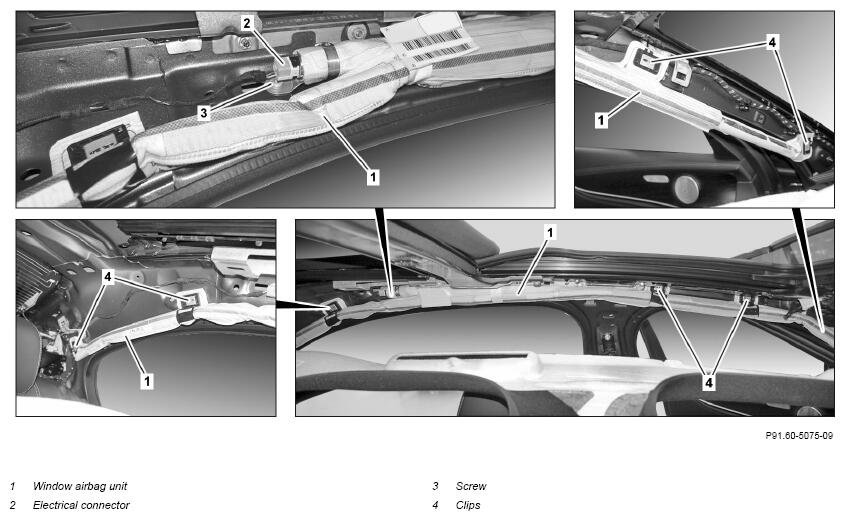

| 4 | Release and disconnect electrical connector (2) at gas generator. | Fig 2 | |
| 5 | Remove screw (3) and unhook holder of gas generator from body. | *BA91.60-P-1004-01O | |

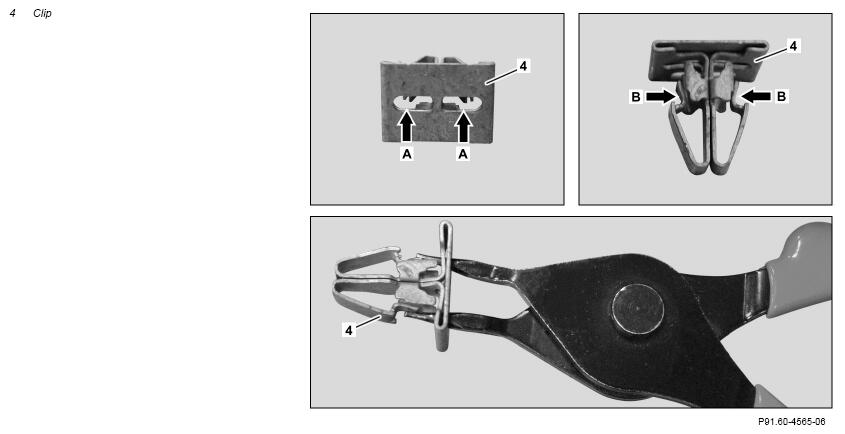

| 6 | Press tabs (arrows B) together through the openings (arrows A) with suitable pliers and remove clamps (4). | ||
| 7 | Remove window airbag unit (1) with gas generator and place in vehicle. | ||
| 8 | Remove window airbag unit (1) with gas generator from vehicle. | Handle window airbag unit (1) carefully. Otherwise, the interior equipment or paint may be damaged. |
|
| 9 | Install in the reverse order. | ||
| Check | |||
| 10 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | When replacing window airbag unit (1). | |
| AD00.00-P-2000-06FR |
AIRBAG
| Number | Designation | Model 257 | Model 290 | |
|---|---|---|---|---|
| BA91.60-P-1004-01O | Bolt, holder for window airbag gas generator to A-pillar/roof frame | Nm | 6 | 6 |
