Remove/Install Touchscreen In Rear Passenger Compartment - AR54.21-P-0063FRX
Model 290
up to model year 2023
with code 224 (Individual rear seats)
MODIFICATION NOTES
| 19.07.2023 | Work procedure adapted. |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

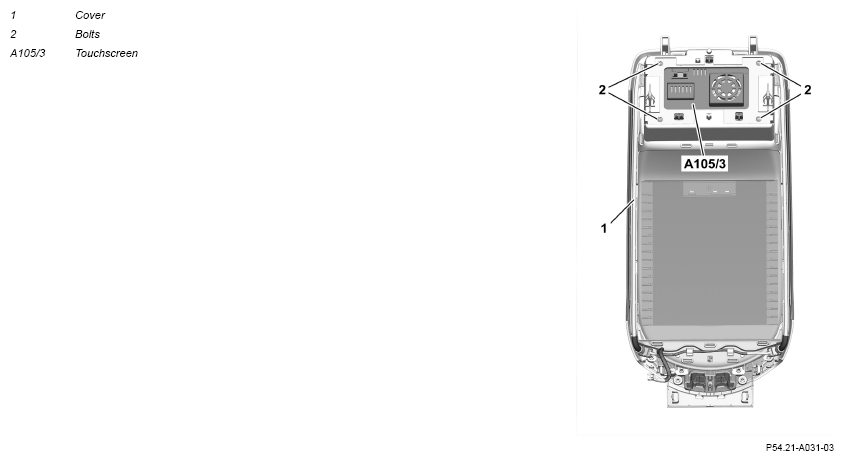

| 1 | Remove cover (1) on center console in rear passenger compartment. | AR68.20-P-2202FRX | |
| 2 | Remove screws (2). | ||
| 3 | Remove touchscreen (A105/3) from cover (1). | ||
| 4 | Install in the reverse order. | ||
| 5 | Commission touchscreen (A105/3). | When replacing the touchscreen (A105/3). | |
| AD00.00-P-2000-06FR |
