Remove/Install Transmission With Torque Converter - AR27.10-P-0500MSC

Transmission 725.0 in model 167 with engine 256.9

Shown in model 167 without code 430 (Off-road package)

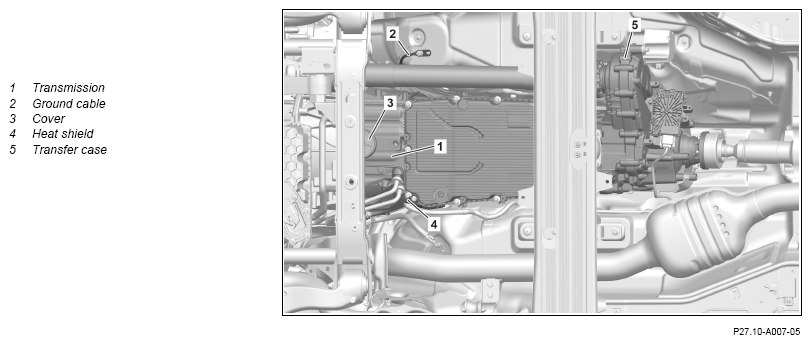

Fig 1: Automatic Transmission Components Location - Transmission 725.0 In Model 167 With Engine 256.9 (Shown In Model 167 Without Code 430)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Remove
1	Remove air duct segments of upper engine cover and air filter.
2	Secure vehicle on vehicle lift.		AR00.60-P-1006A
3	Shift the transmission (1) into neutral position.
4	Release parking brake.
5	Remove ground line of battery.		AR54.10-P-0003ME
6	Remove cover below transfer case (5).	If installed.	AR61.30-P-1001ME
7	Remove lower engine compartment paneling.		AR61.20-P-1105ME
8	Detach oil lines from transmission (1) and oil pan and place to one side.		AR27.55-P-0600MSC
9	Detach ground line (2) from transmission (1).
10	Remove heat shield (4) from transmission (1)		AR27.40-P-0700-01GZ
11	Release, disconnect and expose electrical connector of transmission (1).
12	Remove shield plate from transfer case (5).	Transmission 725.0 in model 167 with engine 256.9 with code 430 (Offroad package)
13	Release and disconnect electrical connector from transfer case control unit (N15/7) and detach electric line from transfer case (5).		AR28.19-P-1003MSC
14	Release and disconnect electrical connector from transfer case absolute sensor (B57) and detach electric line from transfer case (5).	Transmission 725.0 in model 167 with engine 256.9 with code 430 (Offroad package)
			AR28.19-P-1009MSC
15	Remove propeller shaft.		AR41.10-P-0050MSC
16	Remove propeller shaft to front axle differential.		AR41.10-P-0070MSC
17	Remove cover (3).

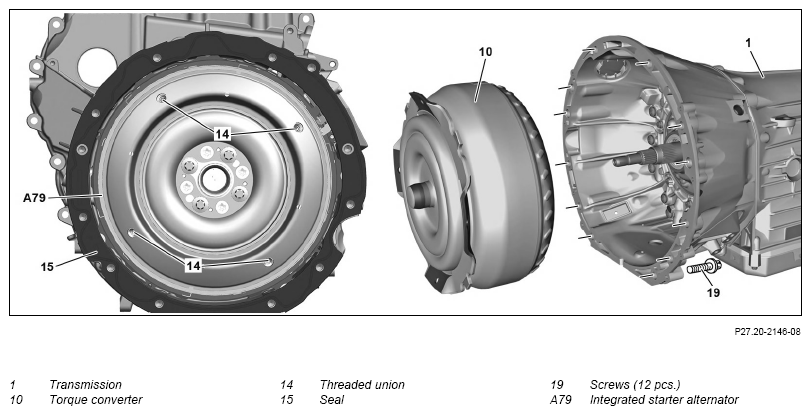

18	Detach torque converter (10) from integrated starter-alternator (A79).		AR27.20-P-0001-01EWM
		Do not use an impact wrench or compressed air tool to remove the bolts. Otherwise, the threaded unions (14) in the integrated starter-alternator (A79) will be damaged.
		Counterholder	Fig 4
		Long wedge	Fig 2
19	Strap down transmission (1) and lower it far enough until all screws (19) around the circumference of transmission (1) are accessible.
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
20	Detach 48 V wiring harness from transmission (1).
21	Support front of engine between front crossmember and engine using wooden wedge.	To ensure the engine is in the correct installation position for the transmission (1).
22	Remove screws (19).	Set of flexible head wrenches	Fig 3
23	Remove transmission (1) with torque converter (10).
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		Secure the torque converter (10) to prevent it from dropping down. Damage will otherwise occur.
24	Remove torque converter (10).	If necessary.	AR27.20-P-0050EWM
25	Unscrew screws in reverse order to tightening procedure and remove centering flange of integrated starter alternator (A79).	Tightening procedure of integrated starter alternator	AR15.40-P-0003-01MRT
		Aid of helper required.
		Counterholder	Fig 4
26	Remove seal (15) between transmission (1) and timing case cover.
27	Remove corrosion from crankshaft.		AR03.20-P-1000-01A
		Multi-purpose paste	*BR00.45-Z-1009-06A
		Assembly cleaner	*BR00.45-Z-1028-04A
28	Check threaded unions (14).	If the threaded unions (14) are damaged or if they are loose, ↓ replace integrated starter alternator (A79).	AR15.40-P-0003MSC
29	Detach transfer case (5).	When continuing to work on transfer case (5).	AR28.10-P-0100MSC
	Install
30	Attach transfer case (5).	When continuing to work on transfer case (5).	AR28.10-P-0100MSC
31	Install centering flange of integrated starter alternator (A79).	Tightening procedure of integrated starter alternator Aid of helper required. Replace centering flange of integrated starter alternator (A79).	AR15.40-P-0003-01MRT
		Bolt, integrated starter alternator to crankshaft	*BA15.40-P-1003-02MRT
		Counterholder	Fig 4
32	Position seal (15) between transmission (1) and timing case cover.	Replace seal (15).
33	Insert torque converter (10).	After removing the torque converter (10).	AR27.20-P-0050EWM
34	Install transmission (1) with torque converter (10).
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		When doing so, align bores of torque converter (10) with the threaded unions (14) in the integrated starter alternator (A79).
35	Screw in screws (19).	Screw/bolt, transmission to engine	*BA27.10-P-1001-04H
		Set of flexible head wrenches	Fig 3
36	Remove wooden wedge at front between front crossmember and engine.
37	Attach 48 V wiring harness at transmission (1)	M6X1	*BA00.10-P-1002-04A
38	Attach torque converter (10) at integrated starter-alternator (A79).		AR27.20-P-0001-01EWM
		Do not use an impact wrench/driver or compressed air tool to screw in the bolts. Otherwise, the threaded unions (14) in the integrated starter-alternator (A79) will be damaged.
		Screw, torque converter/rotor to drive plate/star-shaped drive plate	*BA27.20-P-1001-01D
		Counterholder	Fig 4
		Long wedge	Fig 2
39	Release strapping from transmission (1).
40	Install cover (3).
41	Install propeller shaft to front axle differential.		AR41.10-P-0070MSC
42	Install propeller shaft.		AR41.10-P-0050MSC
43	Connect and lock electrical connector of transfer case control unit (N15/7) and attach electric line to transfer case (5).		AR28.19-P-1003MSC
44	Connect and lock electrical connector of transfer case absolute sensor (B57).	Transmission 725.0 in model 167 with engine 256.9 with code 430 (Offroad package)	AR28.19-P-1009MSC
45	Install shield plate of transfer case (5).	Transmission 725.0 in model 167 with engine 256.9 with code 430 (Offroad package)
		Screw, shield to off-road bracket	*BA28.10-P-1008-01I
46	Connect, lock and fix in place electrical connector of transmission (1).
47	Install heat shield (4) at transmission (1).		AR27.40-P-0700-01GZ
		Screw/bolt, heat shield to oil pan	*BA27.10-P-1009-04H
48	Attach ground line (2) at transmission (1).	Bolt, ground line to transmission housing	*BA27.10-P-1024-04H
49	Attach oil lines at transmission (1) and oil pan		AR27.55-P-0600MSC
50	Install air duct segments of upper engine cove and air filter.
51	Install ground line of battery.		AR54.10-P-0003ME
52	Check transmission oil level and correct if necessary.		AR27.00-P-0270EWN
53	Read out fault memory and delete if necessary.
			AD00.00-P-2000-06ME
54	Perform transmission adaptation with vehicle diagnosis system.	After replacement or repair of transmission (1)
			AD00.00-P-2000-06ME
55	Reset data on service life of torque converter lockup clutch with the vehicle diagnosis system.	After replacement or repair of torque converter (10).
			AD00.00-P-2000-06ME
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
56	Perform engine test run and check transmission (1) for proper operation and leak tightness.
57	Install lower engine compartment paneling.		AR61.20-P-1105ME
58	Install cover below transfer case (5).	If installed.	AR61.30-P-1001ME
59	Disconnect vehicle from vehicle lift.		AR00.60-P-1006A
