Remove/Install Automatic Transmission Oil Cooling Lines - AR27.55-P-0600MSC
Transmission 725.0 in model 167 with engine 256.9

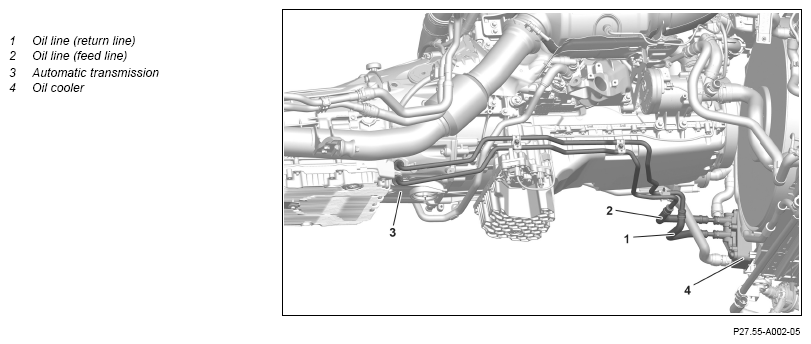

Fig 1: Automatic Transmission Oil Cooling Lines Components Location - Transmission 725.0 In Model 167 With Engine 256.9
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove upper engine cover. | AR01.10-P-2405MSC | |
| 2 | Remove engine air intake duct upstream of air filter. | ||
| 3 | Clean area around oil lines (1, 2) on oil cooler (4). | ||
| 4 | Remove oil lines (1, 2) from oil cooler and sea with suitable stop plugs. | AR27.10-P-0501-03LF | |
| Fig 2 | |||
| 5 | Remove lower center and rear engine compartment linings. | AR61.20-P-1105ME | |
| 6 | Clean area around oil lines (1, 2) on automatic transmission (3). | ||
| 7 | Remove oil lines (1, 2) from oil pan. | *BA27.55-P-1005-01D | |
| *BA27.55-P-1006-01D | |||
| 8 | Remove oil lines (1, 2) from automatic transmission (3) and seal openings with suitable stop plugs. | AR27.10-P-0501-03LF | |
| Fig 2 | |||
| 9 | Remove oil lines (1, 2) toward rear. | ||
| 10 | Check seals in oil cooler (4) and in threaded fittings in automatic transmission (3) for leakage. | If the seals are leaky, ↓ replace threaded fitting in automatic transmission (3) or oil cooler. |
AR27.55-P-1000MSC |
| *BA27.10-P-1007-04H | |||
| 11 | Install in the reverse order. | ||
| 12 | Check and correct oil level in automatic transmission (3). | AR27.00-P-0270EWN | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Conduct engine test run and check automatic transmission (3) for proper operation and leak tightness. | ||
| 14 | Install lower center and rear engine compartment linings. | AR61.20-P-1105ME |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1007-04H | Threaded fitting for oil line to torque converter housing | Nm | 40 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1005-01D | Bolt, clamp of oil cooler oil line to bracket | Nm | 8 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1006-01D | Screw, oil cooler oil line clamp to oil pan | Nm | 8 |
