Replace Shock Absorber Mount On Lower Wishbone - AR32.25-P-0107ME

Model 167

except code 489 (AIRMATIC Dual Control/semi-active air suspension)

except code 490 (Electrohydraulic suspension)

Model 167

with code 489 (AIRMATIC Dual Control/semi-active air suspension)

except code 490 (Electrohydraulic suspension)

Courtesy of MERCEDES-BENZ USA

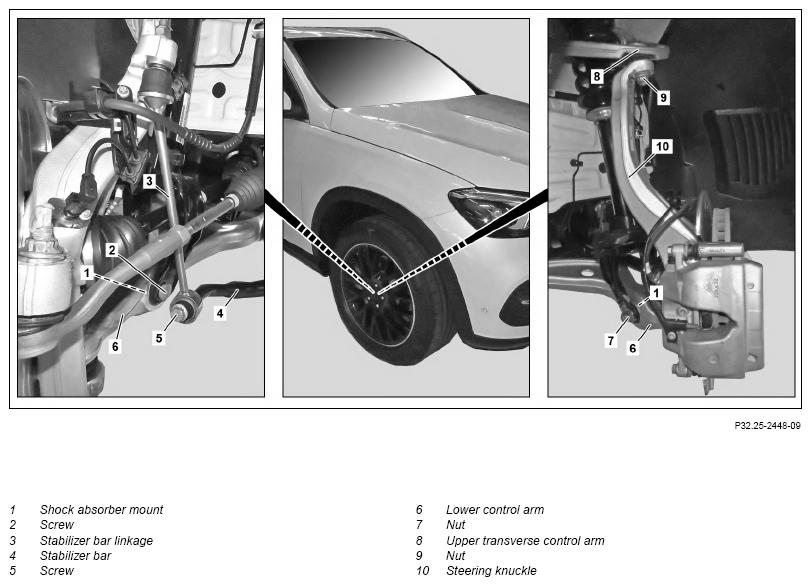

Shown on right side of vehicle without code 489 (AIRMATIC) and without code 490 (Electrohydraulic suspension)

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on air suspension		AH32.22-P-1000-01T
	Evaluation of elastomer bearings		AH00.10-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove front left or right wheel and tire assembly.		AR40.10-P-1102ME
2	Transfer the pneumatic pressure of the suspension strut into the central reservoir using the diagnostic system.	Model 167 with code 489 (AIRMATIC Dual Control/semi-active air suspension) except code 490 (Electrohydraulic suspension)
			AD00.00-P-2000-06ME
		The complete wheels must not touch the ground. Otherwise the suspension struts may suffer initial damage and malfunction at a later stage Select menu item "Actuations" in active suspension and damping system control unit.
3	Remove screw (5) and remove torsion bar linkage (3) from stabilizer (4).	Bolt, stabilizer rod to stabilizer	*BA32.35-P-1002-02D
4	Relieve threaded connection of shock absorber on lower control arm (6) and release.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
5	Remove nut (7) and remove screw (2).	Self-locking nut, shock absorber to wishbone	*BA32.25-P-1002-01O
6	Remove nut (9) and remove steering knuckle (10) from upper transverse control arm (8).	Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle	*BA33.20-P-1001-01W
7	Secure steering knuckle (10) against tipping over using suitable means.
8	Lower the lower control arm (6) until the shock absorber mount (1) is accessible.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
9	Press out shock absorber mount (1) toward front.	Do not exceed a pressure of 140 bar. Otherwise, the shock absorber mount (1) will be damaged. Press in shock absorber mount (1) from front to back. Observe marking.
		Mobil Vacuoline 137 insertion agent, 0.5 L	*BR00.45-Z-1097-06A
		Sleeve	Fig 6
		Threaded spindle	Fig 4
		Extraction/insertion tool	Fig 3
		Hollow cylinder	Fig 2
		Hydraulic hose (complete)	Fig 5
		Hand pump	Fig 1
10	Thoroughly clean bearing surfaces of shock absorber mount (1) on lower control arm (6) and check for damage.	If damage is present, ↓ replace lower control arm (6).	AR33.20-P-0510ME
11	Install in the reverse order.

Fig 1: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hollow Cylinder (652 589 00 33 22)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction/Insertion Tool (164 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Threaded Spindle (652 589 00 33 11)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Hydraulic Hose - Complete (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Sleeve (167 589 00 14 00)

Courtesy of MERCEDES-BENZ USA
