Remove/Install Seat Adjustment Unit On Rear Seat - AR91.12-P-0010MEM

Model 167.9

With Code M036 (Maybach Version)

Courtesy of MERCEDES-BENZ USA

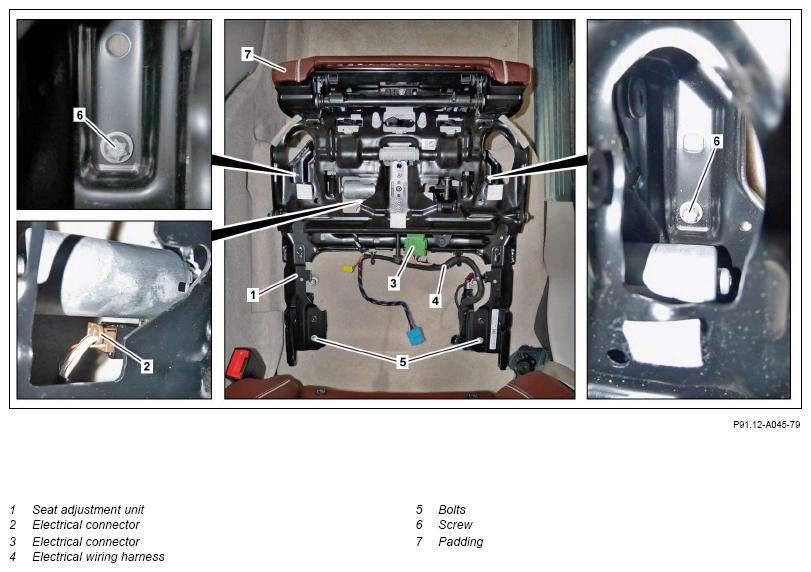

Shown on right side of vehicle

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove rear seat cushion.		AR91.12-P-1021MEM
2	Connect ground line to battery.		AR54.10-P-0003ME
3	Move seat adjustment unit (1) backward until screws (6) are accessible.
4	Release and disconnect electrical connectors (2, 3).
5	Unclip electrical wiring harness (4) from seat adjustment unit (1).
6	Unscrew the bolts (5, 6).	Bolt, seat adjustment unit to body	*BA91.12-P-1019-03M
7	Remove seat adjustment unit (1) from vehicle.	Carefully remove and insert seat adjustment unit (1). Otherwise, parts in the vehicle interior may be damaged.
8	Remove padding (7) and covers on leg rest from seat adjustment unit (1).	If the seat adjustment unit (1) is replaced.
9	Install in the reverse order.
10	Read out and delete fault memory.
			AD00.00-P-2000-06ME
