Remove/Install Cylinder Head Camshafts - AR05.20-P-6992MSC

Engine 256.9 In Model 167

MODIFICATION NOTES

15.08.2019	Note AH00.00-P-0500-01MNE added.	Operation step 4
15.08.2019	Note AH05.20-P-1000-09SZ added.	Operation step 5 and 6

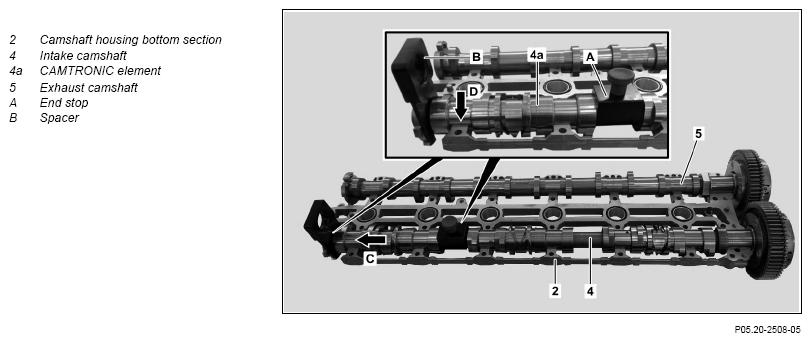

Fig 1: Cylinder Head Camshafts Components Location - Engine 256.9 In Model 167

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove
1	Remove camshaft housing.		AR05.20-P-6997MSC
2	Remove camshaft positioner of intake camshaft (4).	When replacing the intake camshaft (4).
			AR05.20-P-7206MSC
3	Remove camshaft positioner of exhaust camshaft (5).	When replacing the exhaust camshaft (5).
			AR05.20-P-7207MSC
4	Remove cylinder head cover from camshaft housing.		AR01.20-P-5019MSC
	Notes on application of flange sealants to seal major assemblies		AH00.00-P-0500-01MNE
5	Remove exhaust camshaft (5) from camshaft housing lower section (2).
	General information on checking camshafts and bearing points of camshafts		AH05.20-P-1000-09SZ
6	Remove intake camshaft (4) from camshaft housing lower section (2).
	General information on checking camshafts and bearing points of camshafts		AH05.20-P-1000-09SZ
	Install
7	Insert exhaust camshaft (5) in camshaft housing lower section (2).
	Specified engine oils (service) - Overview		BB00.40-P-0223-02A
		Wet camshaft bearing points with engine oil.
8	Insert end stop (A) into intake camshaft (4).	Assembly tool	Fig 2
9	Insert spacer (B) into intake camshaft (4).	Assembly tool	Fig 2
10	Press CAMTRONIC element (4a) in specified direction (arrow C) against spacer (B)	Assembly tool	Fig 2
11	Insert intake camshaft (4) in camshaft housing lower section (2).
	Specified engine oils (service) - Overview		BB00.40-P-0223-02A
		Wet camshaft bearing points with engine oil. Ensure that the CAMTRONIC element (4a) is not twisted during insertion (arrow D).
12	Remove spacer (B) and end stop (A).	Assembly tool	Fig 2
13	Install cylinder head cover on camshaft housing.		AR01.20-P-5019MSC
14	Install camshaft positioner of exhaust camshaft (5).	When replacing the exhaust camshaft (5).
			AR05.20-P-7207MSC
15	Install camshaft positioner of intake camshaft (4).	When replacing the intake camshaft (4).
			AR05.20-P-7206MSC
16	Install camshaft housing.		AR05.20-P-6997MSC

Fig 2: Identifying Assembly Tool (256 589 03 31 00)

Courtesy of MERCEDES-BENZ USA
