Remove/Install DC/DC Converter For 48 V On-Board Electrical System - AR54.10-P-1351ME
Model 167
With Code B01 (48V technology)
MODIFICATION NOTES
| 12.08.2020 | Operation step added. | Operation step 8, 21 |

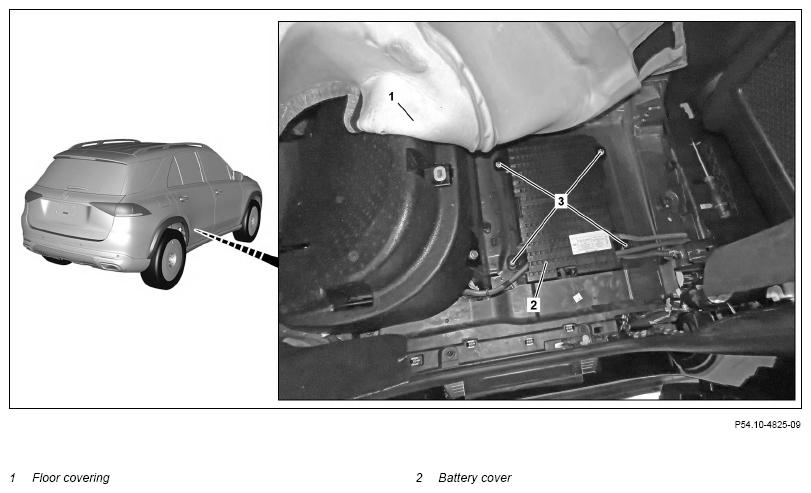

Fig 1: DC/DC Converter For 48 V On-Board Electrical System Components Location - Model 167 With Code B01
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on battery | AH54.10-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||
| 1 | Perform commissioning of DC/DC converter control unit (N83/1). | If the DC/DC converter control unit (N83/1) is replaced. | |
| AD00.00-P-2000-06ME | |||
| 2 | Expose floor covering (1) in right rear passenger compartment far enough until battery cover (2) is accessible. | AR68.80-P-0003ME | |
| 3 | Remove battery cover (2). | ||
| 4 | Clamp off ground line of on-board electrical system battery (G1). | AR54.10-P-0003ME | |
| 5 | Remove dust cap (4). | ||
| 6 | Remove nuts (5) and remove electric lines from DC/DC converter control unit (N83/1). | ||
| 7 | Release and disconnect electrical connector (6). | ||
| 8 | Remove foam material (10). | ||
| 9 | Remove bolts_(7). | ||
| 10 | Remove DC/DC converter control unit (N83/1) vertically upwards. | Make sure that the DC/DC converter control unit (N83/1) is not tilted. Otherwise the contact pin (8) will be damaged |
|
| Check | |||
| 11 | Check contact pin (8) and associated contact sleeve in DC/DC converter control unit (N83/1) for damage. | If damage is present, 1 Replace 48 V on-board electrical system battery (G1/3) or DC/DC converter control unit (N83/1). |
|
| AR54.10-P-0022ME | |||
| 12 | Check threads of bolts (7) and 48 V on-board electrical system battery (G1/3). | If damage is present, ↓ Recut corresponding threads. |
|
| 13 | Check seal (9) for damage. | If damage is present, ↓ Replace seal (9). |
|

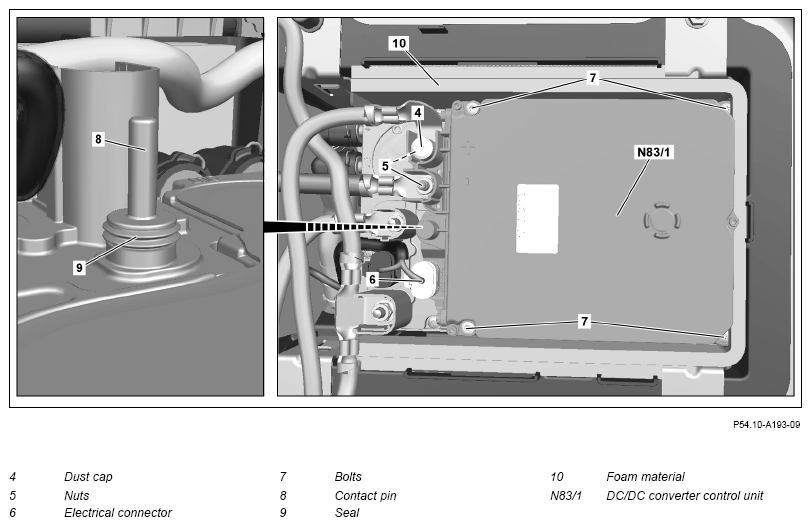

| Fig 2 | |||
| 14 | Check contact surface of 48 V on-board electrical system battery (G1/3) for damage. | If damage is present, 1 Replace 48 V on-board electrical system battery (G1/3). |
|
| AR54.10-P-0022ME | |||
| 15 | Check contact surface of DC/DC converter control unit (N83/1) for damage. | If damage is present, ↓ Replace DC/DC converter control unit (N83/1)] |
|
| Clean | |||
| 16 | Thoroughly clean contact surface of 48 V on-board electrical system battery (G1/3). | When reusing 48 V on-board electrical system battery (G1/3). Plastic spatula |
|
| 17 | Thoroughly clean contact surface of DC/DC converter control unit (N83/1). | When reusing the DC/DC converter control unit (N83/1). Plastic spatula |
|
| Install | |||
| 18 | Apply thermal compound to contact surface of DC/DC converter control unit (N83/1). | AR54.10-P-1351-01FR | |
| 50 ml double-cartridge gun Thermal compound |
*BR00.45-Z-1002-14A | ||
| 19 | Place DC/DC converter control unit (N83/1) onto 48 V on-board electrical system battery (G1/3) and press down evenly. | ||
| 20 | Tighten bolts (7). | *BA54.10-P-1007-01L | |
| 21 | Install foam material (10). | ||
| 22 | Connect and lock electrical connector (6) to DC/DC converter control unit (N83/1). | ||
| 23 | Connect electric lines to DC/DC converter control unit (N83/1) and tighten nuts (5). | *BA54.10-P-1006-01L | |
| 24 | Fit dust cap (4). | ||
| 25 | Clip on ground line of the on-board electrical system battery (G1). | AR54.10-P-0003ME | |
| 26 | Install battery cover (2). | ||
| 27 | Install floor covering (1) in rear passenger compartment. | AR68.80-P-0003ME |
BATTERY
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA54.10-P-1006-01L | Nut, positive line/ground line to DC/DC converter control unit/on-board electrical system battery (48V) | M8 | Nm | 16 |
BATTERY
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA54.10-P-1007-01L | Screw, control unit of DC/DC converter to on-board electrical system battery (48Volt) | M5 | Nm | 6 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-14A | Thermal compound | A 222 989 00 00 |
