Remove/Install Left Rear Seat Belt Buckle - AR91.40-P-1526ME
Model 167
MODIFICATION NOTES
| 27.09.2019 | "Remove seat cushion", added. | Operation step 3 |

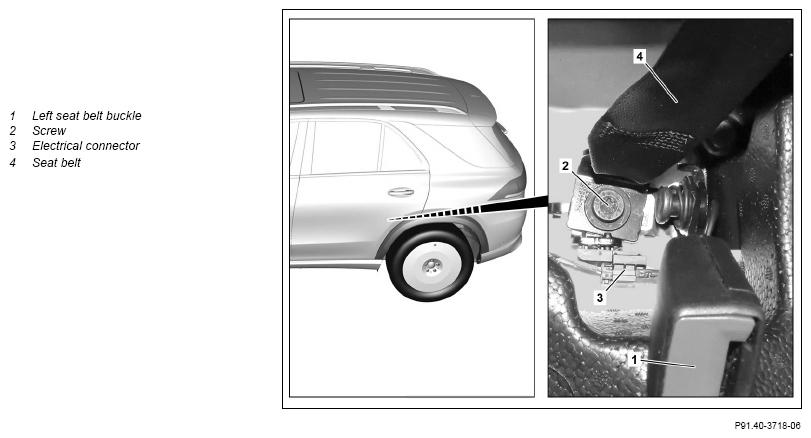

Shown on model 167.1 With Code U01 (Rear seat belt status display in instrument cluster), except code 567 (Vario rear bench seat)

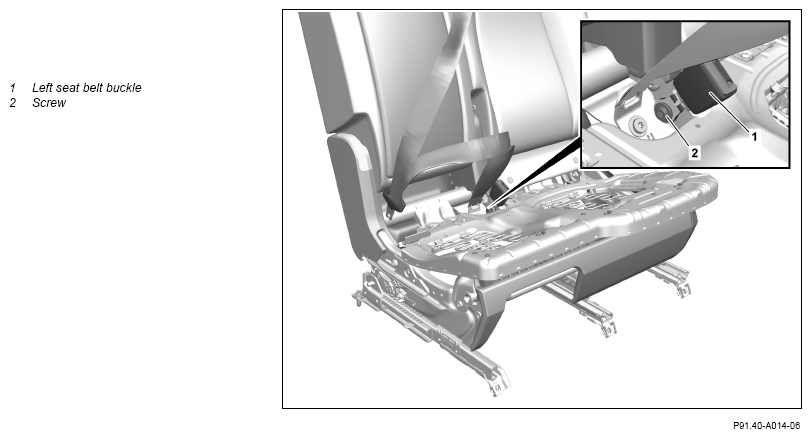

Shown on model 167.9 With Code 226 (7 seats with 3rd seat row)

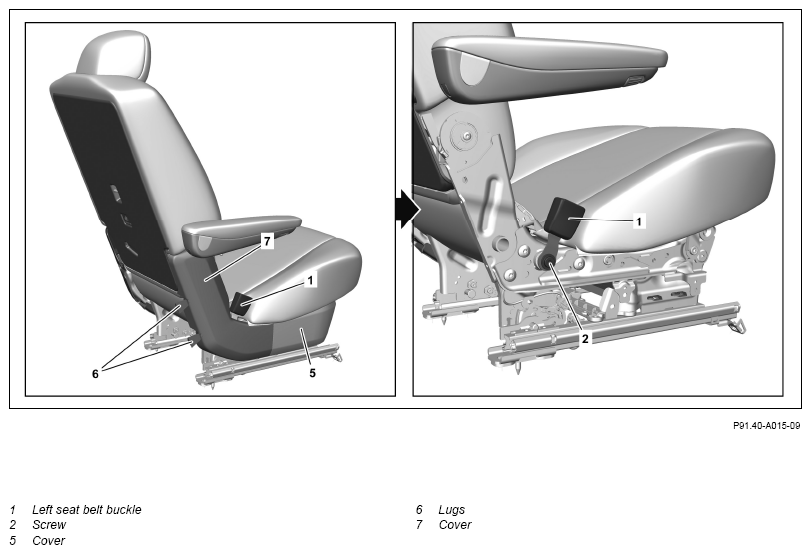

Shown on model 167.9 With Code 224 (Individual rear seat system design)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2.1 | Remove seat cushion in rear passenger compartment on left. | Model 167.9 with code M036 (Maybach version) |
|
| AR91.12-P-1021MEM | |||
| 2.2 | Remove left rear seat. | Model 167.1 with code 567 (Vario rear seat) Model 167.9 except code M036 (Maybach version) |
|
| AR91.12-P-4026ME | |||
| 2.3 | Remove rear bench seat. | Model 167.1 except code 567 (Vario rear seat) Model 167.3 |
|
| AR91.12-P-1021ME | |||
| 3 | Remove seat cushion. | Model 167.1 with code 567 (Vario rear seat) Model 167.9 with code 226 (7-seater with 3rd seat row) except code 224 (Rear individual seat design) except code M036 (Maybach version) |
AR91.18-P-1851MEA |
| 4 | Remove trim (5) from seat frame base and drill out rivet of trim (7) located behind it. | Model 167.9 with code 224 (Rear individual seat design) except code M036 (Maybach version) |
|
| 5 | Fold up shackles (6), drill out rivets located behind them and remove trim (7) from seat frame base. | Model 167.9 with code 224 (Rear individual seat design) except code M036 (Maybach version) |
|
| 6 | Release and disconnect electrical connection (3). | Model 167 with code U01 (Status display for rear seat belts in instrument cluster) |
|
| 7.1 | Unscrew screw (2), place seat belt (4) to one side and remove left seat belt buckle (1). | Model 167.1 except code 567 (Vario rear seat) Model 167.3 |
|
| *BA91.40-P-1009-01U | |||
| 7.2 | Unscrew screw (2) and remove left seat belt buckle (1). | Model 167.1 with code 567 (Vario rear seat) Model 167.9 |
|
| *BA91.40-P-1009-01U | |||
| 8 | Install in the reverse order. |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.40-P-1009-01U | Bolt, rear seat belt buckle | Nm | 35 |
