Remove/Install Rear Seat Cushion Cover - AR91.18-P-1851MEA
Model 167.1
With Code 567 (Vario rear seat)
Model 167.9
With Code 226 (7-seater with 3rd seat row)
except code 224 (Individual rear seats)
except code M036 (Maybach version)

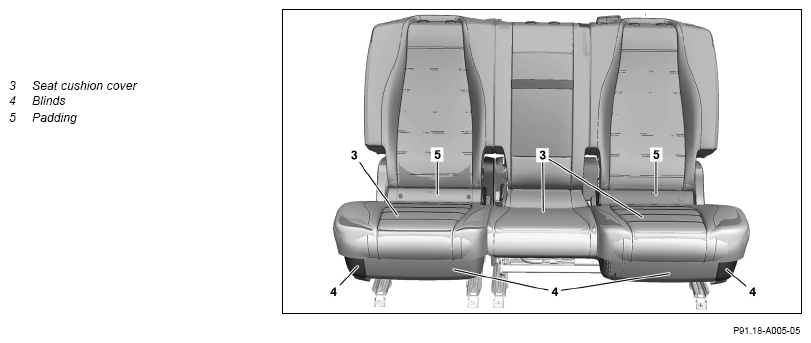

Shown on model 167.1 With Code 567 (Vario rear bench seat)

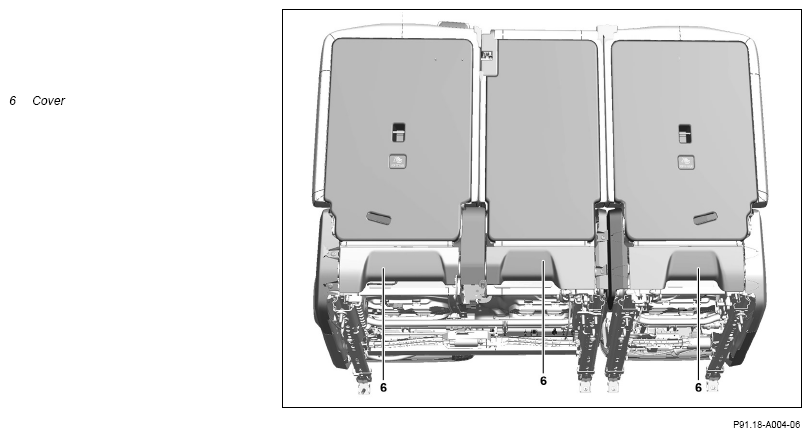

Shown on model 167.1 With Code 567 (Vario rear bench seat) and code 847 (3rd seat row)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove corresponding seat in rear passenger compartment. | AR91.12-P-4026ME | |
| 2 | Remove covers (4) on respective seat. | Model 167.1 with code 567 (Vario rear seat) |
|
| Fig 1 | |||
| 3 | Remove respective cover (6). | Model 167.1 with code 567 (Vario rear seat) with code 847 (3rd seat row) Model 167.9 with code 226 (7-seater with 3rd seat row) except code 224 (Individual rear seats) except code M036 (Maybach version) |
|
| Fig 1 | |||
| 4 | Unhook seat cushion cover (3) from seat cushion frame. | Fig 2 | |
| 5 | Disconnect electrical connectors from seat cushion. | Model 167.1 with code 567 (Vario rear seat) with code 872 (Left and right rear seat heating) Model 167.9 with code 226 (7-seater with 3rd seat row) with code 402 (Rear seat climate control) except code 224 (Individual rear seats) except code M036 (Maybach version) Model 167.9 with code 226 (7-seater with 3rd seat row) with code 872 (Left and right rear seat heating) except code 224 (Individual rear seats) except code M036 (Maybach version) |
|
| 6 | Remove corresponding padding (5) and expose seat cushion cover (3) on corresponding seat cushion. | ||
| 7 | Remove seat cushion cover (3) together with seat cushion padding. | ||
| 8 | Release seat cushion cover (3) far enough from seat cushion padding so that staple clips are accessible. | ||
| 9 | Cut staple clips at attachment points and remove remaining pieces from seat cushion padding. | Carefully remove the remaining pieces of staple clips. Otherwise the seat cushion padding and the seat cushion cover (3) will be damaged. |
|
| Fig 3 | |||
| 10 | Detach seat cushion cover (3) from seat cushion padding. | ||
| 11 | Remove staple wires from seat cushion cover (3). | When replacing the seat cushion cover (3). Ensure that the staple wires are seated correctly in the fabric pockets. |
|
| 12 | Install in the reverse order. |
