Remove/Install Tilting/Sliding Roof Frame - AR77.20-P-3000ME

Model 167.1

With Code 414 (Electric sunroof, glass version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

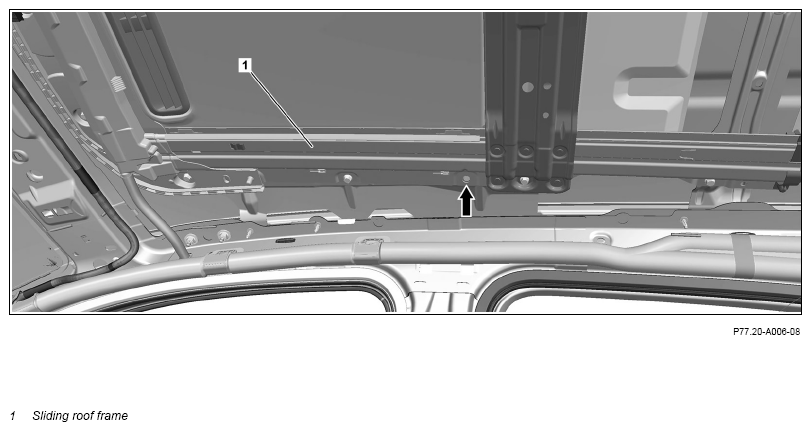

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

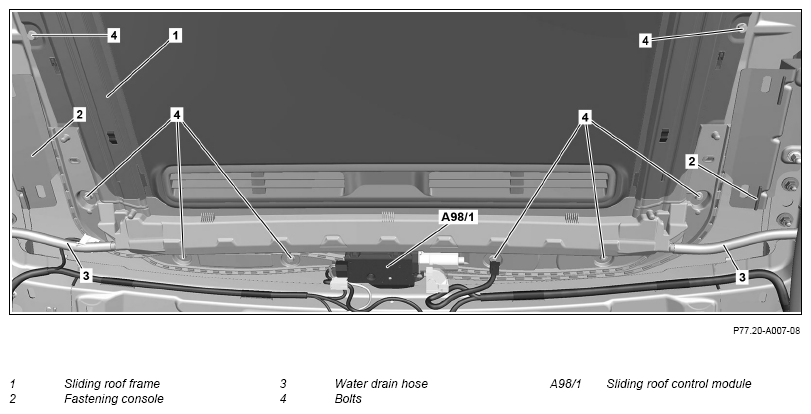

1	Remove sliding roof control module (A98/1).	When replacing sliding roof frame (1).
			AR77.20-P-3010ME
2	Remove headliner.		AR68.30-P-4300ME

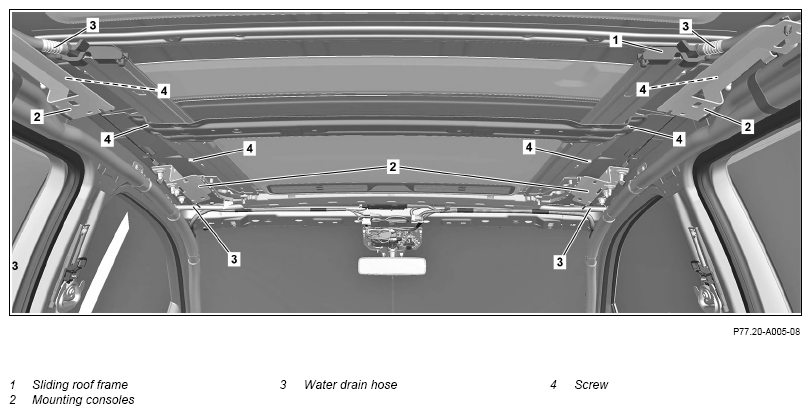

3	Remove mounting supports (2).	M6X1	*BA00.10-P-1002-04A
4	Insert pliers on the left and right side of the vehicle into the corresponding opening (arrow).	Pliers	Fig 1
5	Remove water drain hoses (3) from the left and right side of sliding sunroof frame (1).	Carefully remove water drain hoses (3). Otherwise damage may occur.
6	Remove screws/bolts (4).	Screws (4) remain on sliding roof frame (1).
		M6X1	*BA00.10-P-1002-04A
7	Remove pliers and remove sliding sunroof frame (1) from the vehicle through the door cutout of the front passenger door.	Cover center console. Damage can otherwise occur.
		Helper required.
		Pliers	Fig 1
8	Install in the reverse order.
	Concluding tasks
9	Normalize panoramic sliding sunroof with diagnostic system and perform teach-in run for automatic reversing function.
			AD00.00-P-2000-06ME

Fig 1: Identifying Pliers (164 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
