Remove/Install Left Or Right Seat Belt In Rear Passenger Compartment - AR91.40-P-0682ME
Model 167.1/3
Model 167.9
except code M036 (Maybach version)
Shown on model 167.1
Shown on model 167.3
| Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Disconnect ground line from on-board electrical system battery. | AR54.10-P-0003ME | |
| 2.1 | Remove side load compartment trim. | Model 167.9 except code M036 (Maybach version) |
|
| AR68.30-P-1185MEX | |||
| 2.2 | Remove top side load compartment trim. | Model 167.3 | AR68.30-P-1186MEC |
| 3 | Remove C-pillar trim. | Model 167.1 | AR68.30-P-4490ME |
| Model 167.9 except code M036 (Maybach version) |
AR68.30-P-4490MEX | ||
| 4 | Remove bolt (2) of seat belt guide. | Model 167.1 Model 167.9 except code M036 (Maybach version) |
|
| *BA91.40-P-1011-01U | |||
| 5 | Detach insulation material in area of seat belt (1). | Model 167.1 Model 167.9 except code M036 (Maybach version) |
|

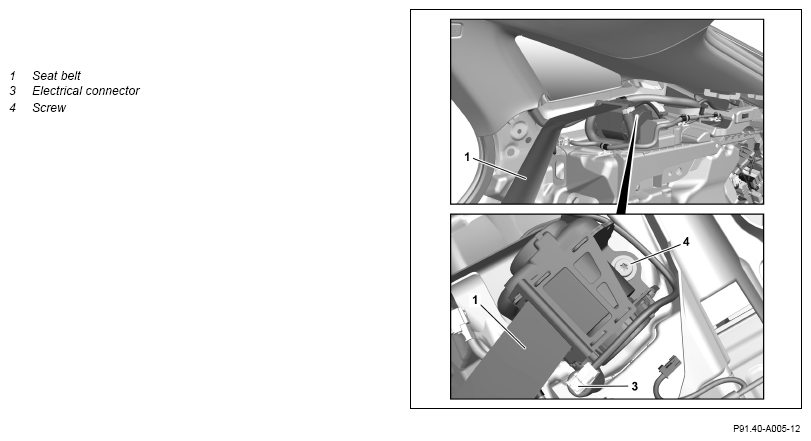

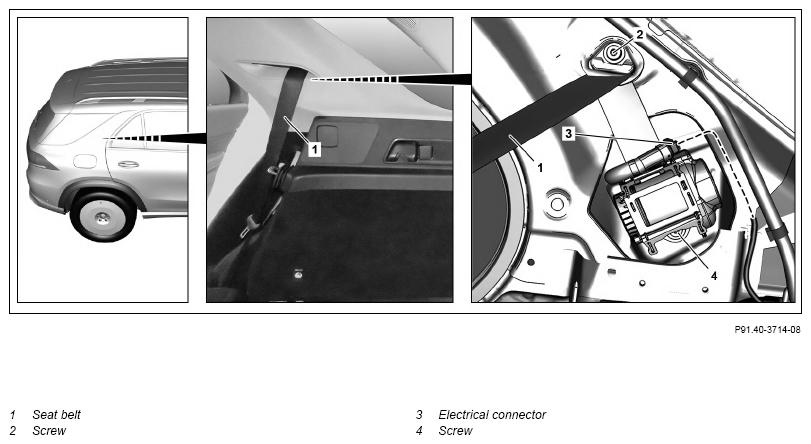

| 6 | Release and disconnect electrical connection (3). | Fig 1 | |
| 7 | Unscrew bolt (4) and remove seat belt (1) with seat belt retractor. | *BA91.40-P-1006-01U | |
| 8 | Install in the reverse order. | ||
| 9 | Check Supplemental Restraint System (SRS) using vehicle diagnosis system. | ||
| AD00.00-P-2000-06ME |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.40-P-1006-01U | Bolt, rear seat belt retractor | Nm | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 167 | |
|---|---|---|---|
| BA91.40-P-1011-01U | Screw in rear seat belt guide bracket | Nm | 35 |
