Remove/Install Rear Side Airbag - AR91.60-P-0694ME

Model 167.1

With Code 293 (Side Airbag in rear left and right)

except code 567 (Vario rear seat)

Model 167.3

With Code 293 (Side Airbag in rear left and right)

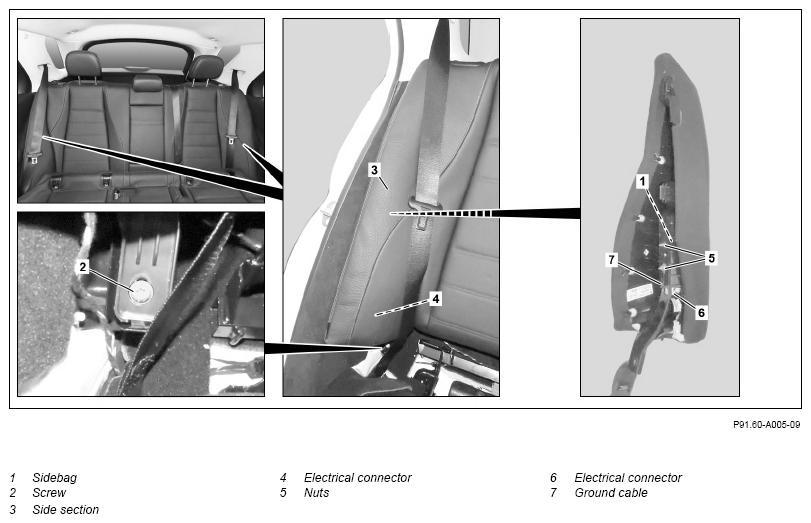

Fig 1: Rear Side Airbag Components Location - Model 167.1/.3 Except Code 567

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Disconnect ground line from battery.		AR54.10-P-0003ME
2	Remove rear seat cushion.		AR91.12-P-1021ME
3	Remove bolt (2).	Bolt, side section of rear seat backrest to holder	*BA91.12-P-1012-03M
4	Release side section (3).	The side section (3) is fastened in the center with a plastic lock.
		Mounting wedge	Fig 2
5	Extend side section (3) and lift far enough until the electrical connector (4) is accessible.	Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.
6	Release and disconnect electrical connector (4) and remove side section (3).
7	Remove nuts (5).	Nut, sidebag unit to backrest frame	*BA91.60-P-1009-01R
8	Detach ground line (7).	Make sure that the ground line (7) is routed correctly.
9	Release and disconnect electrical connector (6).	Removal lever	Fig 3
10	Unhook outer cover from side section (3) in area of side airbag (1) and lift far enough until the side airbag (1) is accessible.
11	Remove side airbag (1) and place down on a suitable mat.
12	Install in the reverse order.
	Check
13	Check Supplemental Restraint System (SRS) using diagnostic system.
			AD00.00-P-2000-06ME
