Remove/Install Rear Seat Cushion - AR91.12-P-1021ME

Model 167.1

except code 567 (Vario rear seat)

Model 167.3

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Move driver's and front passenger seat forward.

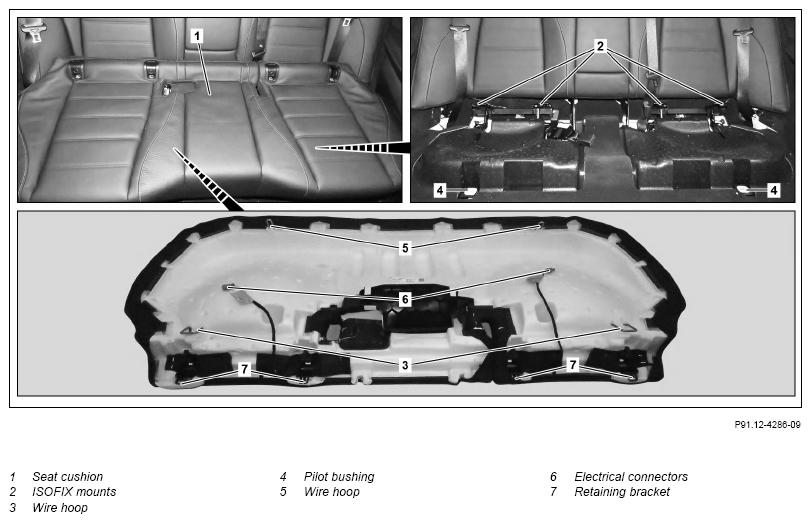

2	Pull seat cushion (1) on wire hoops (5) upwards out of pilot bushings (4).	Ensure that wire hoop (5) is seated correctly in pilot bushings (4).
3	Release and disconnect electrical connectors (6).
4	Press seat cushion (1) at left toward rear and unhook upward out of safety hooks.	A wire hoop (3), which is hooked into the safety hook, is embedded in the seat cushion (1) on the rear left. Ensure that wire hoops (3) are correctly seated into safety hooks.
5	Press seat cushion (1) at right toward rear and unhook upward out of safety hooks.	A wire hoop (3), which is hooked into the safety hook, is embedded in the seat cushion (1) on the rear right. Ensure that wire hoops (3) are correctly seated into safety hooks.
6	Unhook mounting frame bows (7) at seat cushion (1) from ISOFIX mounts (2) and remove seat cushion (1).	Carefully remove the seat cushion (1) from vehicle. Otherwise, component parts of the vehicle may be damaged. Ensure that belt buckles are correctly positioned.
7	Install in the reverse order.
