Remove/Install Headlamp Unit - AR82.10-P-4730LW
Model 205, 213, 253, 293

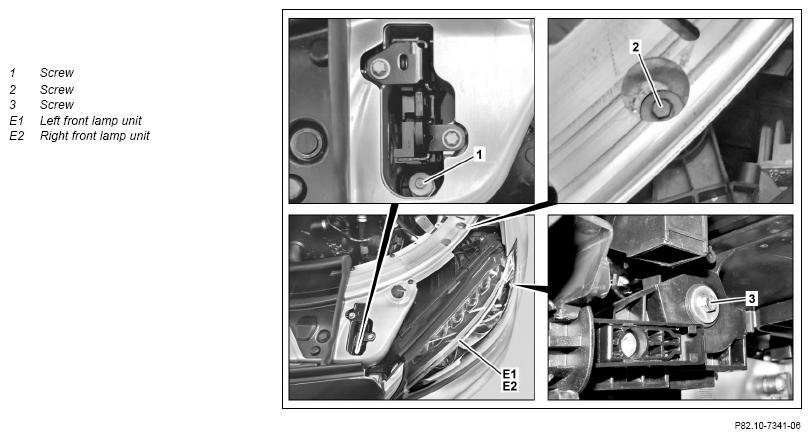

Shown on model 205 on left side of vehicle

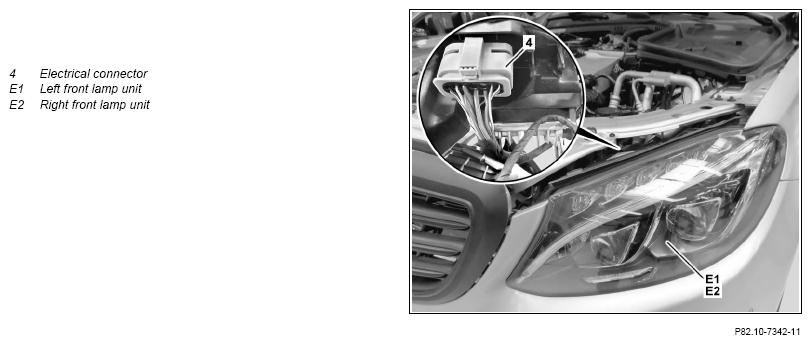

Shown on model 205 on left side of vehicle
| Note on damage to lamp unit | AH82.10-P-0002-00LW | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Perform initial startup of the left front lamp unit (E1) or right front lamp unit (E2) with diagnostic system. | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| Model 293 | AD00.00-P-2000-06FR | ||
| Model 205, 213, 253 with code 631 (Static LED headlamps, left-hand traffic) | AD00.00-P-2000-04B | ||
| Model 205, 213, 253 with code 632 (Headlamps, LED, static, right-side traffic) Model 205, 253 with code 640 (High-performance LED) Model 205, 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205, 253 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 213 with code P35 (Light Package) |
|||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3.1 | Undo bumper in area of left front lamp unit (E1) or right front lamp unit (E2). | When removing left front lamp unit (E1) or right front lamp unit (E2). | |
| Model 205, 253, 293 | AR88.20-P-2000LW | ||
| Model 213 | AR88.20-P-2000LWE | ||
| 3.2 | Remove front bumper. | When removing left front lamp unit (E1) and right front lamp unit (E2). | |
| Model 205, 253, 293 | AR88.20-P-2000LW | ||
| Model 213 | AR88.20-P-2000LWE | ||
| 4 | Remove screws (1, 2, 3). | ||
| 5 | Use tape to mask off left front lamp unit (E1) or right front lamp unit (E2) in area of fender. | If a new left front lamp unit (E1) or right front lamp unit (E2) is not installed. | |
| 6 | Remove left front lamp unit (E1) or right front lamp unit (E2) far enough to gain access to the electrical connector (4). | ||
| 7 | Disconnect electrical connector (4) from left front lamp unit (E1) or right front lamp unit (E2). | ||
| 8 | Remove left front lamp unit (E1) or right front lamp unit (E2). | ||
| 9 | Remove front lamp unit LED module. | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| Model 293 | AR82.10-P-4656EQ | ||
| Model 205, 253 with code 631 (Static LED headlamps, left-hand traffic) | AR82.10-P-4656LW | ||
| Model 205, 253 with code 632 (Headlamps, LED, static, right-side traffic) Model 205, 253 with code 640 (High-performance LED) Model 205, 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205, 253 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|||
| 10 | Remove front actuation module, LED exterior lighting. | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| Model 205 with code 640 (High-performance LED) | AR82.10-P-4650LW | ||
| Model 205 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|||
| Model 253 with code 640 (High-performance LED) | AR82.10-P-4650LWG | ||
| Model 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|||
| 11 | Remove headlamp control unit. | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| Model 205 with code 631 (Static LED headlamps, left-hand traffic) | AR82.10-P-4660LW | ||
| Model 205 with code 632 (Headlamps, LED, static, right-side traffic) Model 205 with code 640 (High-performance LED) Model 205 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|||
| Model 213 with code P35 (Light Package) except code 631 (Static LED headlamps, left-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) |
AR82.10-P-4660LWE | ||
| Model 213 with code 631 (Static LED headlamps, left-hand traffic) except code P35 (Light Package) | AR82.10-P-4660LWF | ||
| Model 213 with code 632 (Headlamps, LED, static, right-side traffic) except code P35 (Light Package) | |||
| Model 253 with code 631 (Static LED headlamps, left-hand traffic) | AR82.10-P-4660LWG | ||
| Model 253 with code 632 (Headlamps, LED, static, right-side traffic) Model 253 with code 640 (High-performance LED) Model 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|||
| 12 | Remove front LED matrix lamp unit control unit. | Model 293 When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| Model 213 with code P35 (Light Package) | AR82.10-P-2025LWE | ||
| Install | |||
| 13 | Install front LED matrix lamp unit control unit. | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| Model 213 with code P35 (Light Package) | AR82.10-P-2025LWE | ||
| 14 | Install headlamp control unit. | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). |
|
| Model 205 with code 631 (Static LED headlamps, left-hand traffic) | AR82.10-P-4660LW | ||
| Model 205 with code 632 (Headlamps, LED, static, right-side traffic) Model 205 with code 640 (High-performance LED) Model 205 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|||
| Model 213 with code P35 (Light Package) except code 631 (Static LED headlamps, left-hand traffic) except code 632 (Headlamps, LED, static, right-side traffic) |
AR82.10-P-4660LWE | ||
| Model 213 with code 631 (Static LED headlamps, left-hand traffic) except code P35 (Light Package) | AR82.10-P-4660LWF | ||
| Model 213 with code 632 (Headlamps, LED, static, right-side traffic) except code P35 (Light Package) | |||
| Model 253 with code 631 (Static LED headlamps, left-hand traffic) | AR82.10-P-4660LWG | ||
| Model 253 with code 632 (Headlamps, LED, static, right-side traffic) Model 253 with code 640 (High-performance LED) Model 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 293 |
|||
| 15 | Install front actuation module, LED exterior lighting. | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| Model 205 with code 640 (High-performance LED) | AR82.10-P-4650LW | ||
| Model 205 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|||
| Model 253 with code 640 (High-performance LED) | AR82.10-P-4650LWG | ||
| Model 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 253 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|||
| 16 | Install front lamp unit LED module. | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| Model 293 | AR82.10-P-4656EQ | ||
| Model 205, 253 with code 631 (Static LED headlamps, left-hand traffic) | AR82.10-P-4656LW | ||
| Model 205, 253 with code 632 (Headlamps, LED, static, right-side traffic) Model 205, 253 with code 640 (High-performance LED) Model 205, 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205, 253 with code 642 (Dynamic LED headlamps, right-hand traffic) |
|||
| 17 | Use tape to mask off new left front lamp unit (E1) or right front lamp unit (E2) in area of fender. | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| 18 | Establish contact for electrical connector (4) on left front lamp unit (E1) or right front lamp unit (E2). | ||
| 19 | Insert left front lamp unit (E1) or right front lamp unit (E2). | ||
| 20 | Screw in screws (1, 2, 3) and tighten gently by hand. | ||
| 21.1 | Install front bumper. | When installing left front lamp unit (E1) and right front lamp unit (E2). | |
| Model 205, 253, 293 | AR88.20-P-2000LW | ||
| Model 213 | AR88.20-P-2000LWE | ||
| 21.2 | Fasten bumper in area of left front lamp unit (E1) or right front lamp unit (E2). | When installing left front lamp unit (E1) or right front lamp unit (E2). | |
| Model 205, 253, 293 | AR88.20-P-2000LW | ||
| Model 213 | AR88.20-P-2000LWE | ||
| 22 | Open maintenance flap in left front or right front fender liner. | ||
| 23 | Align left front lamp unit (E1) or right front lamp unit (E2) and tighten screws (1, 2, 3). | ||
| 24 | Close maintenance flap in left front or right front fender liner. | ||
| 25 | Remove tape from left front lamp unit (E1) or right front lamp unit (E2). | ||
| 26 | Perform initial startup of the left front lamp unit (E1) or right front lamp unit (E2) with diagnostic system. | When replacing the left front lamp unit (E1) or the right front lamp unit (E2). | |
| Model 205, 213, 253 with code 631 (Static LED headlamps, left-hand traffic) | AD00.00-P-2000-04B | ||
| Model 205, 213, 253 with code 632 (Headlamps, LED, static, right-side traffic) Model 205, 253 with code 640 (High-performance LED) Model 205, 253 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 205, 253 with code 642 (LED Intelligent Light System) Model 213 with code P35 (Light Package) |
|||
| Model 293 | AD00.00-P-2000-06FR | ||
| Check | |||
| 27 | Check and correct the headlamp adjustment. | ||
| Model 293 | AP82.10-P-8260KA | ||
| Model 205, 253 | AP82.10-P-8260E | ||
| Model 213 | AP82.10-P-8260J |
