Remove/Install Wiper System - AR82.30-P-6400LW

Model 205

Model 213

Model 238

Model 253, 293

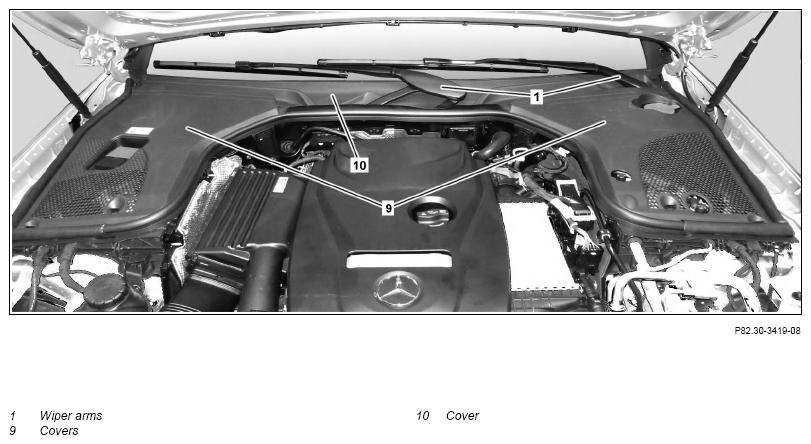

G14188015Courtesy of MERCEDES-BENZ USA

Shown on model 213

Shown on model 205

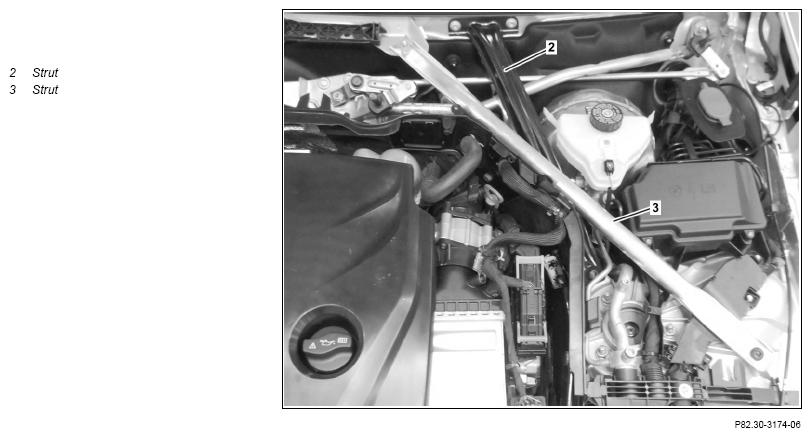

G14188016Courtesy of MERCEDES-BENZ USA

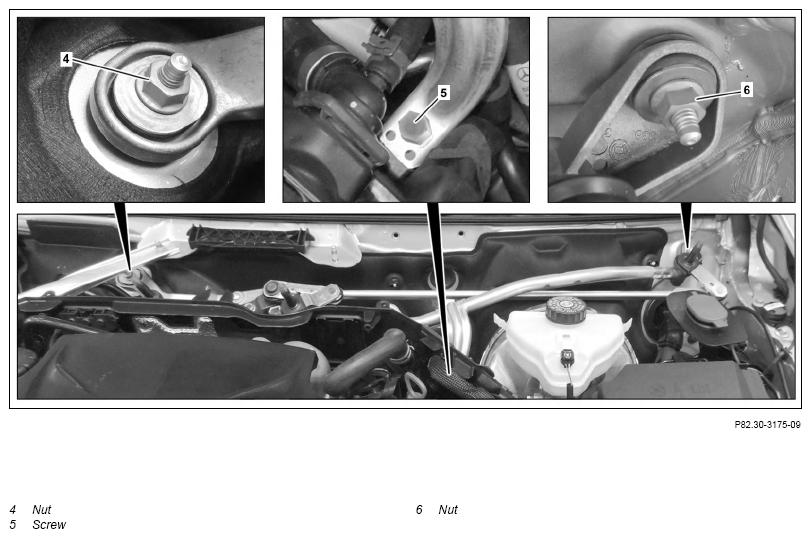

G14188017Courtesy of MERCEDES-BENZ USA

Shown on model 205

Shown on model 205

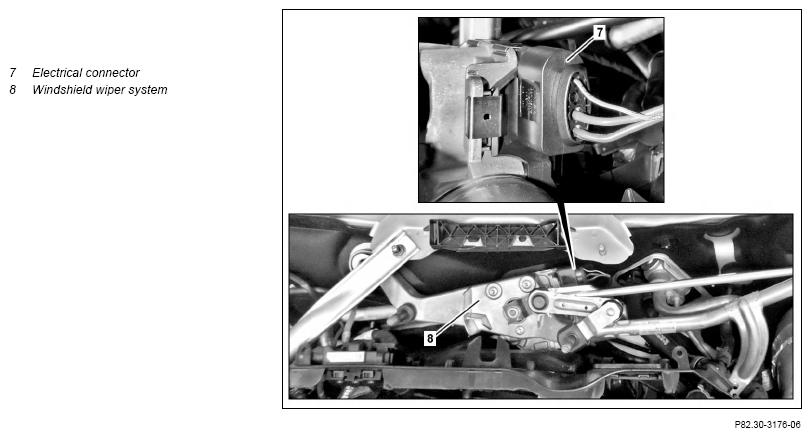

G14188018Courtesy of MERCEDES-BENZ USA
WARNING Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). AS82.30-Z-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove wiper arms (1).   AR82.30-P-6100LW
2 Remove covers (9).
3 Remove cover (10). Model 213, 238, 253, 293
4 Remove strut (3). TORQUE SPECIFICATION Screw/bolt, upper struts to suspension strut tower mounting bracket *BA62.30-P-1001-02K
    TORQUE SPECIFICATION Nut, upper struts to firewall *BA62.30-P-1002-02K
5 Remove strut (2). TORQUE SPECIFICATION Screw/bolt, lower strut to suspension strut tower mounting bracket *BA62.30-P-1003-02K
    TORQUE SPECIFICATION Screw/bolt, lower strut to firewall *BA62.30-P-1004-02K
6 Remove nuts (4, 6). TORQUE SPECIFICATION Nut, windshield wiper system to body *BA82.30-P-1003-01M
7 Remove screw (5). TORQUE SPECIFICATION Screw/bolt, windshield wiper system to bracket *BA82.30-P-1002-01M
8 Lift up windshield wiper system (8) and disconnect electrical connector (7).
9 Remove windshield wiper system (8).
10 Install in the reverse order.
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 205 Model 213
BA62.30-P-1001-02K Screw/bolt, upper struts to suspension strut tower mounting bracket Stage 1   Nm 50 35
Stage 2   Nm - 50
Stage 3 Loosen ∠° - 180
Stage 4   Nm - 50
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 238 Model 253
BA62.30-P-1001-02K Screw/bolt, upper struts to suspension strut tower mounting bracket Stage 1   Nm 35 50
Stage 2   Nm 50 -
Stage 3 Loosen ∠° 180 -
Stage 4   Nm 50 -
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 293
BA62.30-P-1001-02K Screw/bolt, upper struts to suspension strut tower mounting bracket Stage 1   Nm 50
Stage 2   Nm -
Stage 3 Loosen ∠° -
Stage 4   Nm -
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 205 Model 213
BA62.30-P-1002-02K Nut, upper struts to firewall Nm 35 35
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 238 Model 253
BA62.30-P-1002-02K Nut, upper struts to firewall Nm 35 23
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 293
BA62.30-P-1002-02K Nut, upper struts to firewall Nm 23
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 205 Model 213
BA62.30-P-1003-02K Screw/bolt, lower strut to suspension strut tower mounting bracket Nm 50 50
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 238 Model 253
BA62.30-P-1003-02K Screw/bolt, lower strut to suspension strut tower mounting bracket Nm 50 50
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 293
BA62.30-P-1003-02K Screw/bolt, lower strut to suspension strut tower mounting bracket Nm 50
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 205 Model 213
BA62.30-P-1004-02K Screw/bolt, lower strut to firewall Nm 23 23
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 238 Model 253
BA62.30-P-1004-02K Screw/bolt, lower strut to firewall Nm 23 23
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 293
BA62.30-P-1004-02K Screw/bolt, lower strut to firewall Nm 23
WINDSHIELD WIPER

Number Designation Model 205 Model 213
BA82.30-P-1002-01M Screw/bolt, windshield wiper system to bracket Nm 11 11
WINDSHIELD WIPER

Number Designation Model 238 Model 253
BA82.30-P-1002-01M Screw/bolt, windshield wiper system to bracket Nm 11 11
WINDSHIELD WIPER

Number Designation Model 293
BA82.30-P-1002-01M Screw/bolt, windshield wiper system to bracket Nm 10
WINDSHIELD WIPER

Number Designation Model 205 Model 213
BA82.30-P-1003-01M Nut, windshield wiper system to body Nm 20 20
WINDSHIELD WIPER

Number Designation Model 238 Model 253
BA82.30-P-1003-01M Nut, windshield wiper system to body Nm 20 20
WINDSHIELD WIPER

Number Designation Model 293
BA82.30-P-1003-01M Nut, windshield wiper system to body Nm 20
