Remove/Install LED Module For Front Headlamp Unit - AR82.10-P-4656LW
Model 205, 253 with code 631 (Static LED headlamps, left-hand traffic)
Model 205, 253 with code 632 (Headlamps, LED, static, right-side traffic)
Model 205, 253 with code 640 (High-performance LED)
Model 205, 253 with code 641 (Headlamps, LED, dynamic, left-side traffic)
Model 205, 253 with code 642 (Headlamps, LED, dynamic, right-side traffic)
Model 205, shown on left side of vehicle
Model 253, shown on left side of vehicle

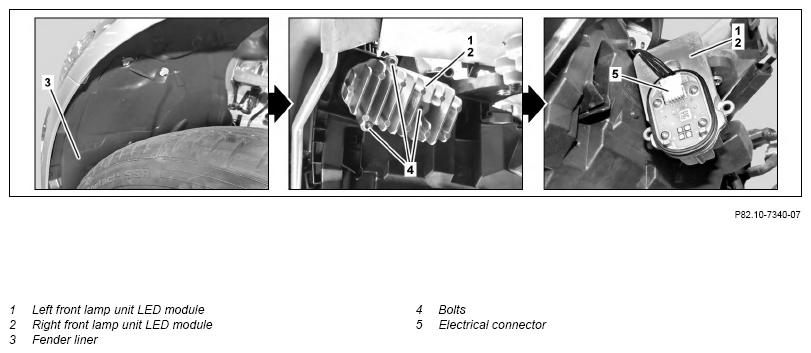

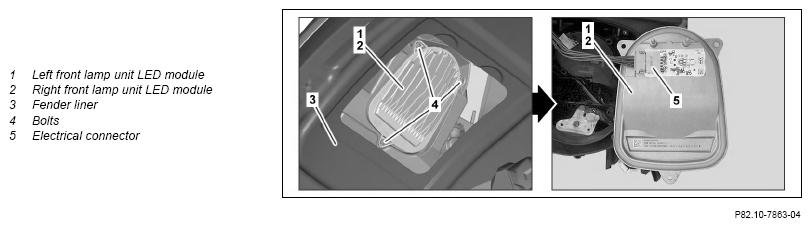

Fig 1: LED Module For Front Headlamp Unit Components Location - Model 253 With Codes 631, 632, 640, 641 And 642
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of left front lamp unit LED module (1) or right front lamp unit LED module (2) | When replacing the left front lamp unit LED module (1) or right front lamp unit LED module (2). | |
| AD00.00-P-2000-04B | |||
| 2 | Turn left or right front wheel towards the inside | ||
| 3 | Switch off ignition and remove transmitter key | ||
| 4.1 | Detach fender liner (3) in front area until the left front lamp unit LED module (1) or right front lamp unit LED module (2) is accessible | Model 205 with code 631 (Static LED headlamps, left-hand traffic) Model 205 with code 632 (Headlamps, LED, static, right-side traffic) Model 205 with code 640 (High-performance LED) Model 205 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 205 with code 642 (Headlamps, LED, dynamic, right-side traffic) |
AR88.10-P-1300LW |
| 4.2 | Open maintenance flap in fender liner (3) at left or right front | Model 253 with code 631 (Static LED headlamps, left-hand traffic) Model 253 with code 632 (Headlamps, LED, static, right-side traffic) Model 253 with code 640 (High-performance LED) Model 253 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 253 with code 642 (Headlamps, LED, dynamic, right-side traffic) |
|
| 5 | Remove screws/bolts (4) from left front lamp unit LED module (1) or right front lamp unit LED module (2) | ||
| 6 | Pull out left front lamp unit LED module (1) or right front lamp unit LED module (2) until electrical connector (5) can be disconnected | ||
| 7 | Disconnect electrical connector (5) and remove left front lamp unit LED module (1) or right front lamp unit LED module (2) | ||
| 8 | Install in the reverse order | ||
| 9 | Attach Data Matrix code adhesive label to left front lamp unit or right front lamp unit | When replacing the left front lamp unit LED module (1) or right front lamp unit LED module (2). |
