Remove/Install Fender Liner In Front Fender - AR88.10-P-1300LW

Model 205

Model 253

Model 293

Shown on fender liner, model 205.0

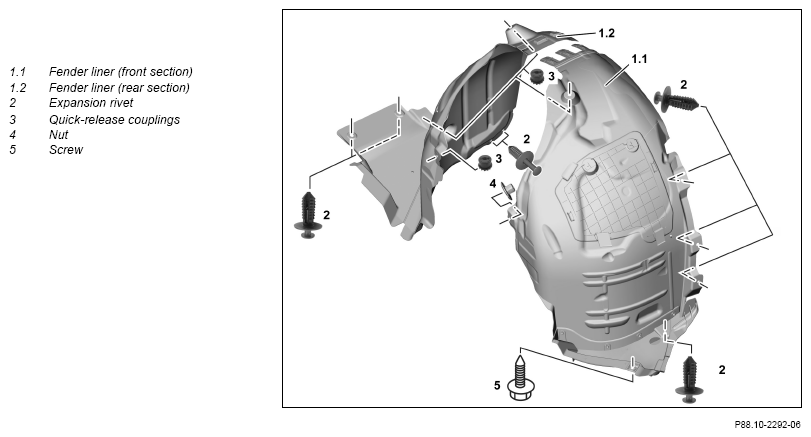

Fig 1: Fender Liner In Front Fender Components Location - Model 253 (Shown On Model 205.0)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Raise vehicle	Model 205 Model 253 Model 293
		Model 205, 253	AR00.60-P-1002LWG
2	Remove screw (5)
3	Remove expansion rivets (2)
4	Unscrew nuts (3, 4)
5	Pull outer edges of fender liner (front section) (1.1) and fender liner (rear section) (1.2) toward inside out of wheel arch lip and remove fender liner (front section) (1.1) and fender liner (rear section) (1.2)
6	Install in the reverse order
