Remove/Install HERMES Control Unit - AR82.95-P-0019LWX
Model 253 (except 253.992/993)
as of model year 2020
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out commissioning of HERMES control unit (N112/9). | When replacing the HERMES control unit (N112/9). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove center console cover. | Model 253 (except 253.992/993) with transmission 724 as of model year 2020 Model 253 (except 253.992/993) with transmission 725 as of model year 2020 | |
| AR68.20-P-2350LW | |||
| 3 | Remove clamp (1). | ||

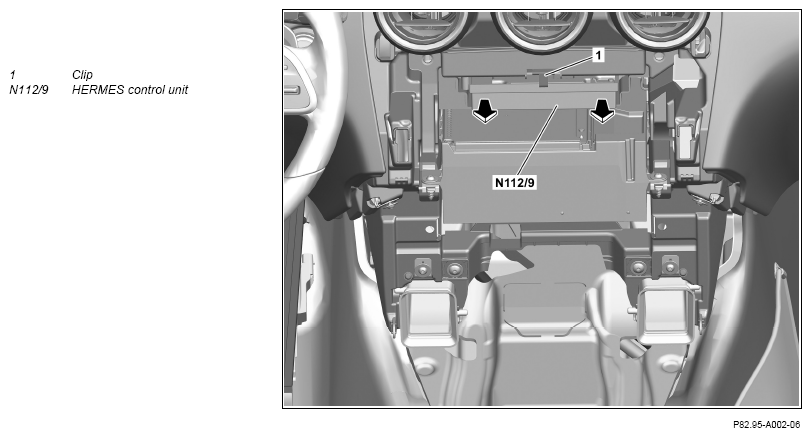

| 4 | Guide out HERMES control unit (N112/9) (arrows) and disconnect electrical connectors. | ||
| 5 | Remove HERMES control unit (N112/9). | ||
| 6 | Install in the reverse order |
