Remove/Install Cover On Center Console - AR68.20-P-2350LW
Model 205 with transmission 722, 724, 725
Model 213 with transmission 725
Model 253 with transmission 724, 725
Model 293

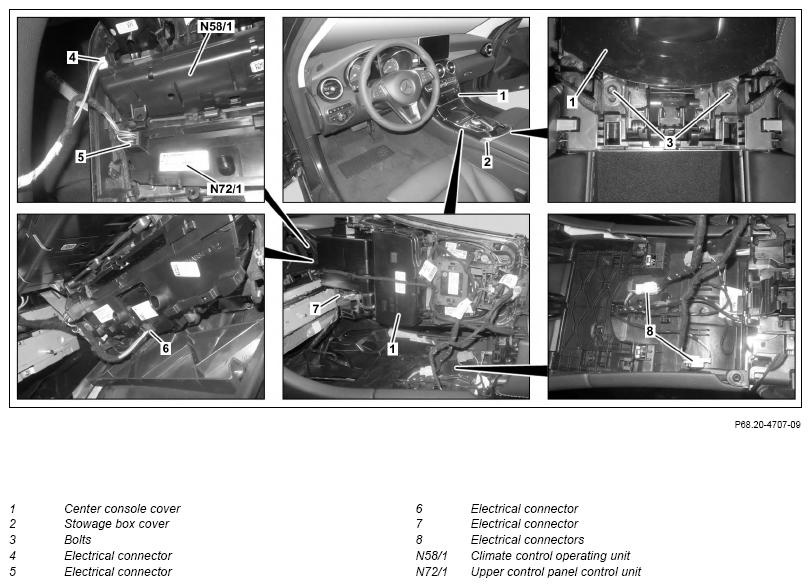

Shown on model 205 with code 581 (automatic air conditioning)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | ||
| 2 | Remove stowage box cover (2). | Model 205 with transmission 722, 724, 725 Model 253 with transmission 724, 725 Model 293 |
AR68.20-P-1020LW |
| Model 213 with transmission 725 | AR68.20-P-1020LWE | ||
| 3 | Unscrew screws (3) from center console cover (1). | ||
| 4 | Lift center console cover (1) at rear and extend at top front at instrument panel until electrical connectors (4, 5) can be accessed. | Cover center console and instrument panel with a cloth. Center console and instrument panel may otherwise be damaged. |
|
| 5 | Disconnect electrical connector (4) at climate control operating unit (N58/1). | Model 205 with transmission 722, 724, 725 with code 581 (Automatic air conditioning) Model 213 with transmission 725 with code 581 (Automatic air conditioning) Model 253 with transmission 724, 725 with code 581 (Automatic air conditioning) Model 293 with code 581 (Automatic air conditioning) |
|
| 6 | Disconnect electrical connector (5) at upper control panel control unit (N72/1). | ||
| 7 | Disconnect electrical connectors (6, 7, 8). | ||
| 8 | Remove center console cover (1). | ||
| 9 | Install in the reverse order. |
