Remove/Install Center High-Mounted Stop Lamp - AR82.10-P-5375LWS

Model 205.2

Model 253.1/9

Model 293

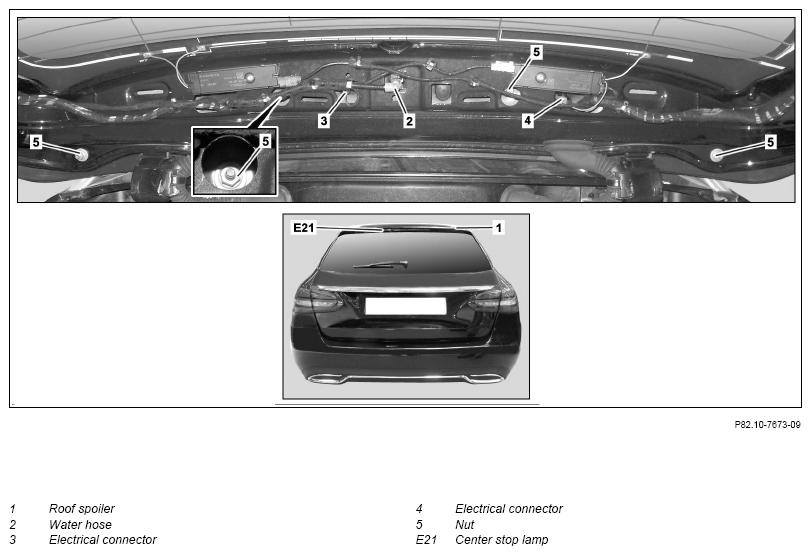

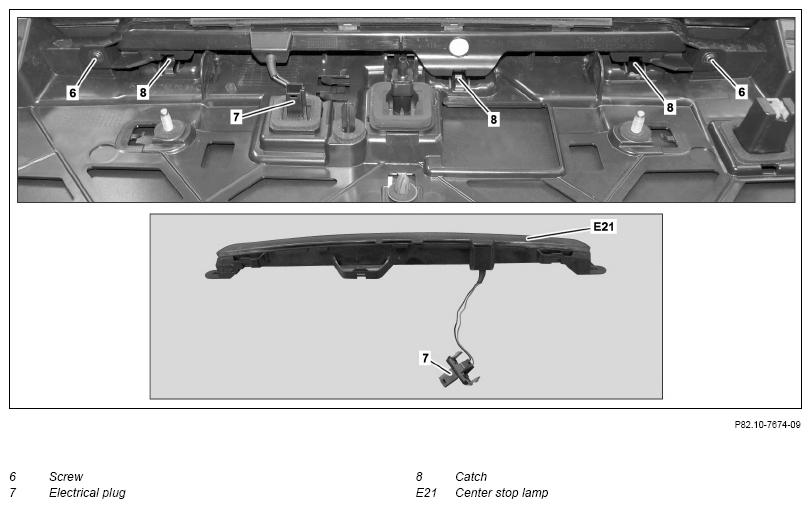

Fig 1: Center High-Mounted Stop Lamp Components Location - Model 253.9 (Shown On Model 205.2)

Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.2

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove upper liftgate trim.	Model 293	AR72.20-P-6631EQ
		Model 205.2	AR72.20-P-6631LWS
		Model 253.1/9	AR72.20-P-6631LWG
2	Remove water hose (2) from spray nozzle.	Ensure that the water hose (2) for the rear window washer system is correctly seated.
3	Disconnect electrical connector (3).
4	Disconnect electrical connection (4).
5	Unscrew nuts (5) and remove roof spoiler (1).
6	Remove screw/bolts (6).
7	Detach electrical plug (7) from roof spoiler (1).
8	Push catch (8) on roof spoiler (1) downwards using a suitable tool.
9	Remove center brake lamp (E21) from the roof spoiler (1).	Carefully remove center brake lamp (E21). Otherwise, damage can occur to the guides.
10	Install in the reverse order.
