Remove/Install Upper Liftgate Trim - AR72.20-P-6631LWG
Model 253
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||

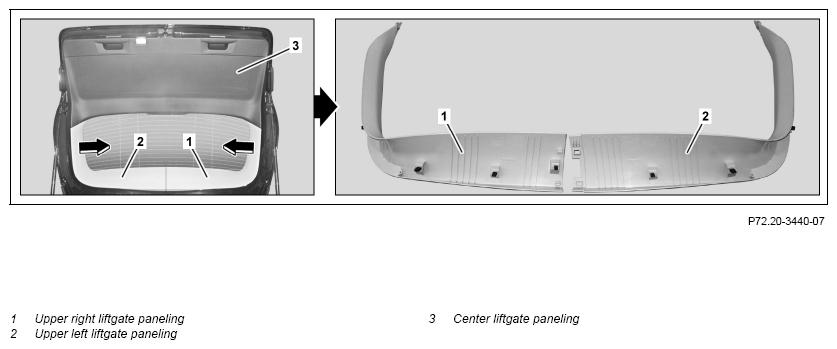

| 1 | Remove center liftgate paneling (3) | AR72.20-P-6618LWS | |
| 2 | Unclip upper right liftgate panel (1) from window frame in direction of arrow | ||
| 3 | Completely unclip upper right liftgate panel (1) and remove | ||
| 4 | Unclip upper left liftgate paneling (2) from window frame in direction of arrow | ||
| 5 | Completely unclip upper left liftgate panel (2) and remove | ||
| 6 | Install in the reverse order |
