Remove/Install COMAND Controller/Head Unit - AR82.85-P-1100LW

Model 205, 253

with code 520 (Audio 20 USB)

Model 205, 253

with code 522 (Audio 20 radio)

Model 205

up to model year 2019

with code 531 (COMAND APS)

Model 253

with code 531 (COMAND APS)

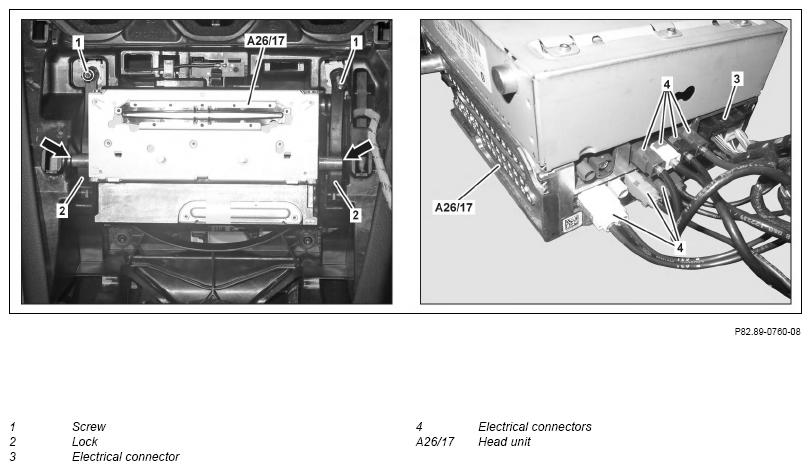

G14188075Courtesy of MERCEDES-BENZ USA
Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notes on avoiding damage to optical fibers during repair work   AH82.60-P-0001-05AK
REMOVINGINSTALLING Remove/install
1 Perform commissioning of head unit (A26/17). When replacing head unit (A26/17).
REFER TO SELF DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
2 Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3.1 Remove cover from center console. Model 205 with transmission 722, 724, 725 up to model year 2019
with code 531 (COMAND APS)
Model 205 with transmission 722, 724, 725 with code 520 (Audio 20 USB)
Model 205 with transmission 722, 724, 725 with code 522 (Audio 20 radio)
Model 253 with transmission 724, 725 with code 520 (Audio 20 USB)
Model 253 with transmission 724, 725 with code 522 (Audio 20 radio)
Model 253 with transmission 724, 725 with code 531 (COMAND APS)

      AR68.20-P-2350LW
3.2 Remove cover for upper control panel control unit. Model 205 with transmission 716 up to model year 2019
with code 531 (COMAND APS)
Model 205 with transmission 716 with code 520 (Audio 20 USB)
Model 205 with transmission 716 with code 522 (Audio 20 radio)
Model 253 with transmission 716 with code 520 (Audio 20 USB)
Model 253 with transmission 716 with code 522 (Audio 20 radio)
Model 253 with transmission 716 with code 531 (COMAND APS)

      AR68.20-P-2313LW
4 Loosen screws (1) on locks (2). IMPORTANT Screws/bolts (1) remain on locks (2).
5 Guide head unit (A26/17) out of locks (2) until the electrical connectors (3, 4) are accessible. INSTALLATION IMPORTANT Retaining bolts (arrows) of head unit (A26/17) must be inserted into the locks (2).
6 Disconnect electrical connectors (3, 4). IMPORTANT The number of electrical connectors (4) can vary depending on the equipment installed.
7 Remove head unit (A26/17).
8 Install in the reverse order.
