(Remove/Install Battery For E-Call Russia Control Unit - AR82.95-P-0051NKA)

Model 117, 156, 166.0, 176, 205, 246, 253, 292

with code 9U1 (ECALL RUSSIA preinstallation (GLONASS))

with code E64 (ECALL RUSSIA (GLONASS))

Model 117, 190, 217, 218, 222, 246

with code 6U4 (Mercedes-Benz Ecall emergency call system Russia (GLONASS))

Model 166.8

with code E64 (ECALL RUSSIA (GLONASS))

Model 176, 253

with code 9U1 (ECALL RUSSIA preinstallation (GLONASS))

except code E64 (ECALL RUSSIA (GLONASS))

Model 463

up to model year 2019

with code 9U1 (ECALL RUSSIA preinstallation (GLONASS))

with code E64 (ECALL RUSSIA (GLONASS))

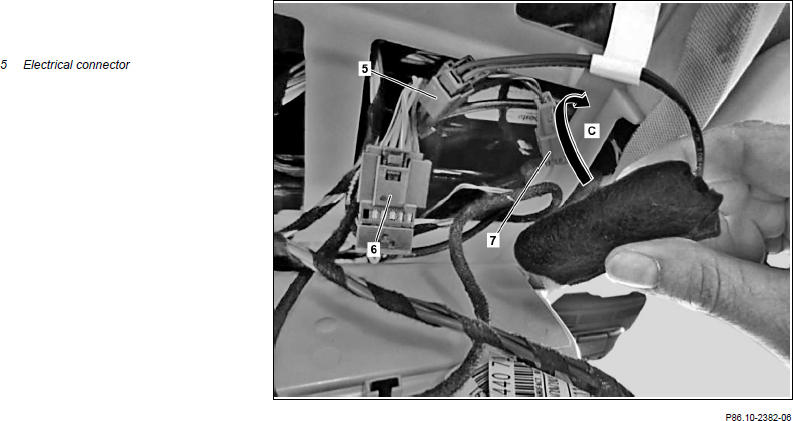

Shown on model 166

Courtesy of MERCEDES-BENZ USA

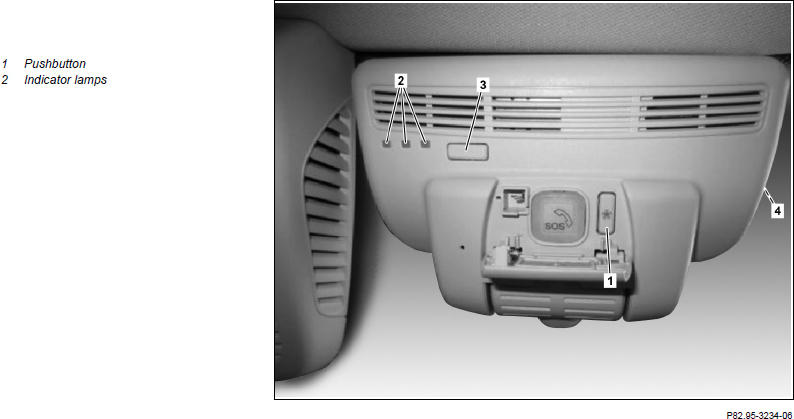

Shown on model 166

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove overhead control panel control unit.	Model 218	AR82.20-P-1000CW
		Model 190	AR82.20-P-1000RG
		Model 292	AR82.20-P-1100GQC
		Model 166	AR82.20-P-1100GQ
		MODEL 117, 156, 176, 246	AR82.20-P-1000NKB
		Model 205.4	AR82.20-P-1000LWR
		Model 205 (except 205.4) 217.3, 222, 253	AR82.20-P-1000LF
		Model 217.4	AR82.20-P-1000LCA
		Model 463 up to model year 2019	AR82.20-P-1000GW
		Pay particular attention to the cleanliness of the tools used. Otherwise, the trim parts will be soiled.
2	Remove battery for E-Call Russia control unit (N167) from headliner.	Ensure proper routing of the electrical wiring harness and electrical connectors (5) as well as proper insulation of the battery. Stow the electrical wiring harness as far as possible above the roof lining. To prevent noise during driving operation. The battery is installed above the roof lining in the area of the overhead control panel control unit (arrow C).
3	Release and disconnect electrical connector (5) for battery from E-Call Russia control unit (N167).
4	Wrap felt tape around battery.	If installing a new battery.
5	Install in reverse order.
	Check
6	To activate the self-test of the E-Call Russia control unit (N167) press and hold the (1) button for approximately 1 s.	Several announcements will be made during the self-test. If at the end of the self-test all indicator lamps (2) and the SOS button light steadily for 5 s, this means that the self-test was successful.
