Remove/Install Retaining Lock For Crankshaft/Ring Gear - AR03.30-P-5000MFC
Engine 260 in model 118, 177, 247
MODIFICATION NOTES
| 30.10.2019 | Document completely revised. |
Shown on model 177 without code M016 (performance-enhanced engine)
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Install/remove | |||
| 1.1 | Remove starter (M1). | When work is performed with installed transmission. | |
| AR15.30-P-7100MFC | |||
| 1.2 | Remove transmission. | When work is performed with transmission removed. | |
| Engine 260 in model 118, 177, 247 with transmission 724.1 | AR01.10-P-2401MFJ | ||
| Engine 260 in model 118, 177, 247 with transmission 724.0 | AR01.10-P-2401MFC | ||
| 2.1 | Rotate the engine at the center bolt of the crankshaft in the direction of engine rotation and check the toothing of the starter ring gear (1) for wear or damage. | With installed transmission. | |
If there are problems, ↓ Replace drive plate. |
Fig 3 | ||
| Engine 260 in model 118, 177, 247 with transmission 724.0 | AR03.30-P-8001MFC | ||
| Engine 260 in model 118, 177, 247 with transmission 724.1 | AR03.30-P-8001MFI | ||
| 2.2 | Check the starter ring gear (1) for wear or damage. | With removed transmission. If there are problems, ↓ Replace drive plate. |
|
| Engine 260 in model 118, 177, 247 with transmission 724.0 | AR03.30-P-8001MFC | ||
| Engine 260 in model 118, 177, 247 with transmission 724.1 | AR03.30-P-8001MFI | ||

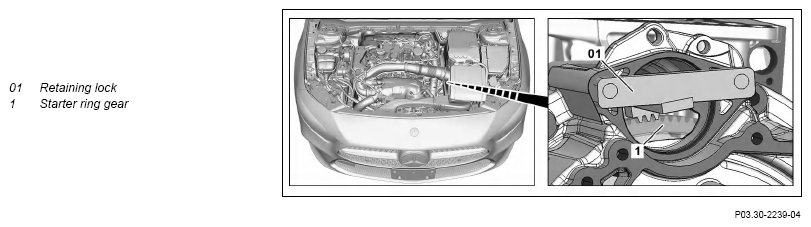

| 3.1 | Insert retaining lock (01) in starter opening until it engages with the starter ring gear (1). | With installed transmission. | |
| Fig 1 | |||

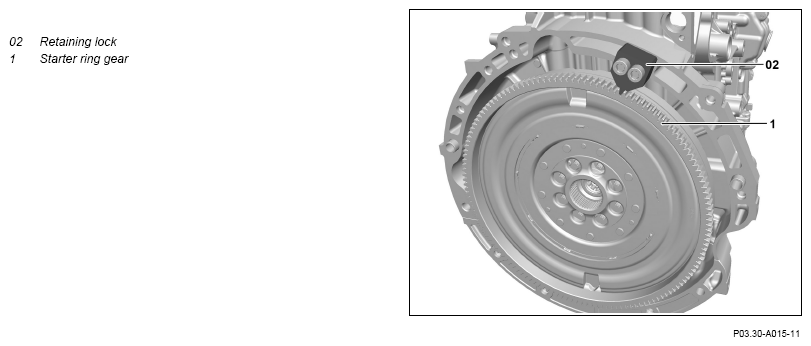

| 3.2 | Install the retaining lock (02) on the crankcase | With removed transmission. | |
| Fig 2 | |||
| 4 | Removal in the reverse order. |
